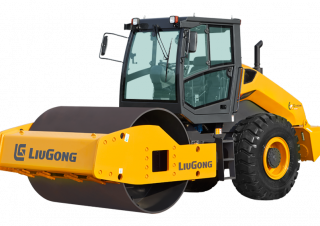

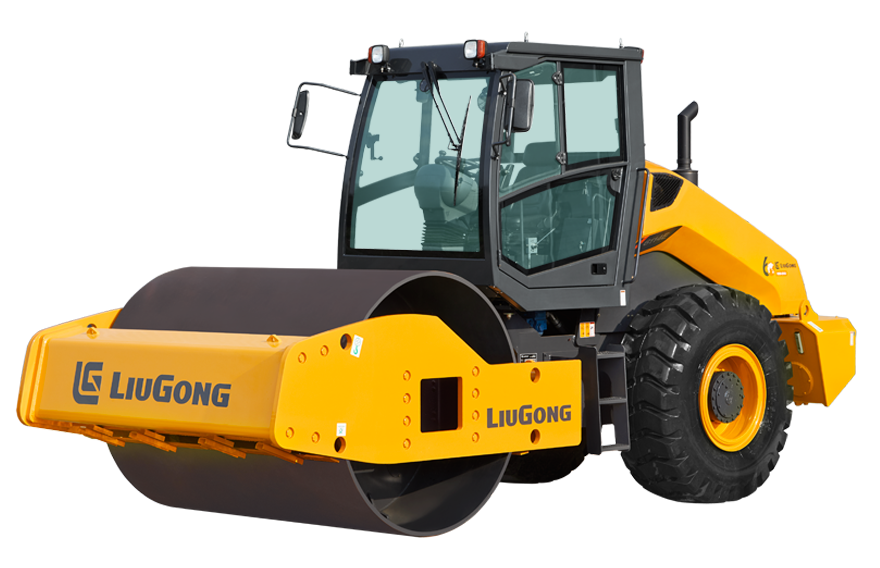

6114E Liugong 6114E Specifications & Technical Data (2018—2026)

Weight: 14t – Transport length: 6m – Transport width: 2.28m – Transport height: 3.05m – Travel speed: 11km/h – Frequency: 30Hz

Rollers Single-drum Rollers Liugong 6114E

Visit Liugong live at

Technical specs - 6114E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14 t
Transport length
6 m
Transport width
2.28 m
Transport height
3.05 m
Travel speed
11 km/h
Frequency
30 Hz
Roller width
2.13 m
Rollers Ø
1.555 m
Amplitude
2 mm
Turning radius outside
6.5 m
Centrifugal force
280 kN
Model series
E

More technical details, like: vibration, drive, turning radius inside, statical line load, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, turning radius inside, statical line load, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Liugong 6114E FAQ

When was the Liugong 6114E manufactured?

The Liugong 6114E was first produced in 2018.

How much does the Liugong 6114E weigh?

The Liugong 6114E weighs 14 tons.

What are the transport dimensions of the Liugong 6114E single-drum roller?

The Liugong 6114E has transport dimensions of 6 meters in length, 2.28 meters in width, and 3.05 meters in height.

What is the travel speed of the Liugong 6114E single-drum roller?

The Liugong 6114E has a travel speed of 11 km/h.

What is the turning radius of the Liugong 6114E single-drum roller?

The Liugong 6114E has an outside turning radius of 6.5 meters.

What are the compaction capabilities of the Liugong 6114E single-drum roller?

The Liugong 6114E operates at a frequency of 30 Hz, has an amplitude of 2 mm, and generates a centrifugal force of 280 kN for compaction.

What are the roller specifications of the Liugong 6114E single-drum roller?

The Liugong 6114E has a roller width of 2.13 meters and a roller diameter of 1.555 meters.

How much is a Liugong 6114E Single-drum Roller (2018u20132025) worth?

The residual value of the Liugong 6114E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
