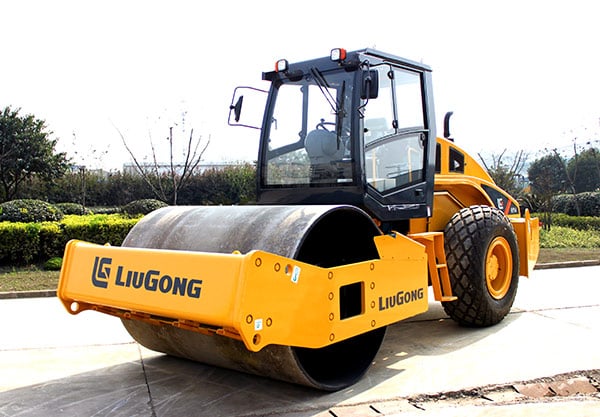

Liugong 6114 Specifications & Technical Data (2018-2025)

Technical specs - 6114 Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.64 t

Transport length: 6.18 m

Transport width: 2.28 m

Transport height: 3.05 m

Travel speed: 11 km/h

Frequency: 35 Hz

Roller width: 2.13 m

Rollers Ø: 1.5 m

Amplitude: 1.7 mm

Turning radius outside: 6.5 m

Statical line load: 32.83 kg/cm

Centrifugal force: 300 kN

More technical details, like: vibration, drive, turning radius inside, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, turning radius inside, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

6114 Liugong Specification for Europe (EN)

Liugong 6114 FAQ

When was the Liugong 6114 manufactured?

The Liugong 6114 was first produced in 2018.

How much does the Liugong 6114 single-drum roller weigh?

The Liugong 6114 single-drum roller weighs 15.64 tons.

What are the transport dimensions of the Liugong 6114 single-drum roller?

The Liugong 6114 has a transport length of 6.18 meters, a transport width of 2.28 meters, and a transport height of 3.05 meters.

What is the travel speed of the Liugong 6114 single-drum roller?

The Liugong 6114 single-drum roller has a travel speed of 11 km/h.

What is the turning radius of the Liugong 6114 single-drum roller?

The Liugong 6114 has an outside turning radius of 6.5 meters.

What are the compaction capabilities of the Liugong 6114 single-drum roller?

The Liugong 6114 single-drum roller operates at a frequency of 35 Hz with an amplitude of 1.7 mm, generates a centrifugal force of 300 kN, and has a statical line load of 32.83 kg/cm.

What are the roller specifications of the Liugong 6114 single-drum roller?

The Liugong 6114 has a roller width of 2.13 meters and a roller diameter of 1.5 meters.

How much is a Liugong 6114 Single-drum Roller (2018u20132025) worth?

The residual value of the Liugong 6114 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
