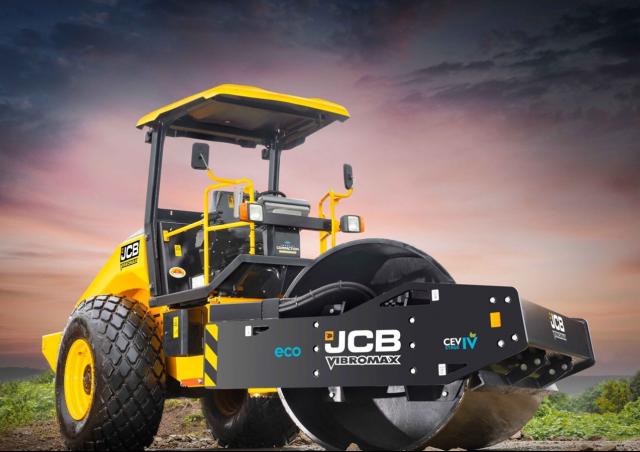

VM117 DD JCB VM117 DD Specifications & Technical Data (2022—2026)
Visit JCB live at
.jpg){kind=logo}
Technical specs - VM117 DD JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.44 t
- Transport length
- 5.78 m
- Transport width
- 2.24 m
- Transport height
- 2.31 m
- Travel speed
- 10 km/h
- Frequency
- 36 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 11.336 m
- Centrifugal force
- 256 kN
- Model series
- VM
- Engine manuf.
- JCB
- Engine type
- 444TA4-55
- Engine power
- 73.8 HP
- Displacement
- 4.399 l
- Emission level
- CEV Stage- IV
More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
