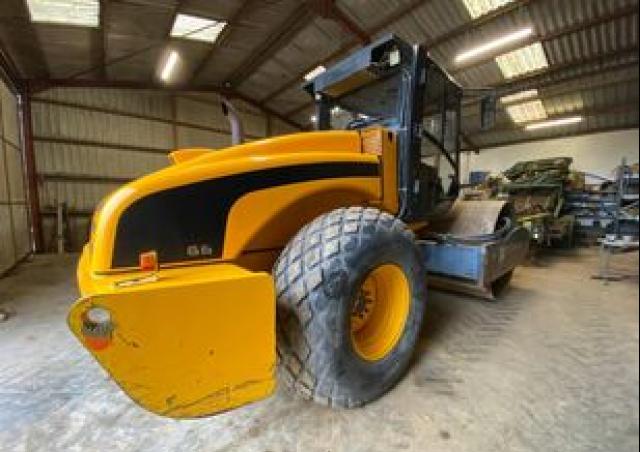

VM132 PD T4 JCB-Vibromax VM132 PD T4 Specifications & Technical Data (2015—2017)
Technical specs - VM132 PD T4 JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.6 t
- Transport length
- 5.7 m
- Transport width
- 2 m
- Transport height
- 3.07 m
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 36 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.6 m
- Amplitude
- 2 mm
- Turning radius inside
- 3.4 m
- Statical line load
- 34 kg/cm
- Model series
- VM
- Engine manuf.
- JCB
- Engine type
- 444 EcoMax
- Engine power
- 108 kW
- Displacement
- 4.8 l
More technical details, like: vibration, turning radius outside, centrifugal force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
