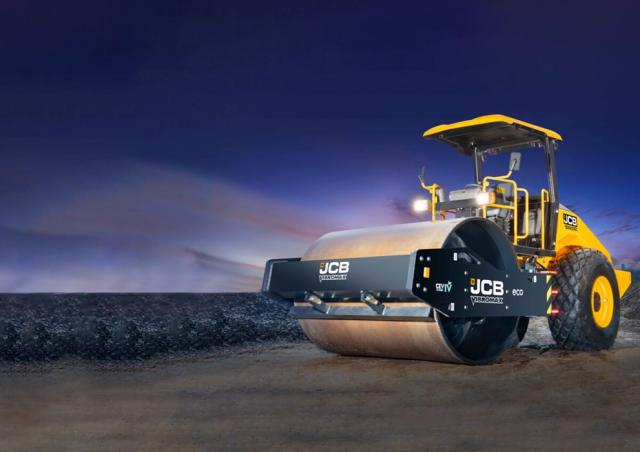

VM117 PD JCB-Vibromax VM117 PD Specifications & Technical Data (2014—2015)
Technical specs - VM117 PD JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.3 t
- Transport length
- 5.69 m
- Transport width
- 2.23 m
- Transport height
- 3.07 m
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 36 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.6 m
- Amplitude
- 1.8 mm
- Turning radius inside
- 3.4 m
- Statical line load
- 29.5 kg/cm
- Model series
- VM
- Engine manuf.
- JCB
- Engine type
- EcoMax
- Engine power
- 93 kW
- Displacement
- 4.4 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 103x132 mm
- Emission level
- Euro III B
More technical details, like: vibration, turning radius outside, centrifugal force, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
