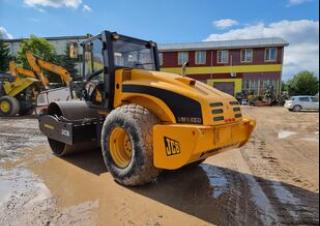

VM 200 PD T3 JCB-Vibromax VM 200 PD T3 Specifications & Technical Data (2008—2014)
Technical specs - VM 200 PD T3 JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.7 t
- Transport length
- 5.996 m
- Transport width
- 2.27 m
- Transport height
- 2.985 m
- Drive
- A
- Travel speed
- 11.8 km/h
- Frequency
- 35 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.6 m
- Amplitude
- 2 mm
- Turning radius outside
- 3.6 m
- Model series
- VM
- Engine manuf.
- Cummins
- Engine type
- QSB6.7
- Engine power
- 129 kW
- Displacement
- 6.699 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: vibration, turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
