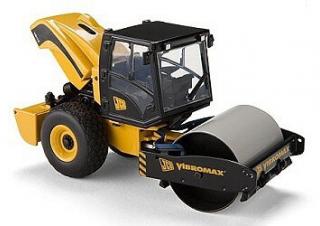

VM 115 PD T3 JCB-Vibromax VM 115 PD T3 Specifications & Technical Data (2008—2014)
Technical specs - VM 115 PD T3 JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.6 t
- Transport length
- 5.444 m
- Transport width
- 2.25 m
- Transport height
- 2.935 m
- Drive
- A
- Travel speed
- 10.5 km/h
- Frequency
- 36 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.95 mm
- Turning radius outside
- 3.4 m
- Model series
- VM
- Engine manuf.
- JCB
- Engine type
- 444 TCA
- Engine power
- 97 kW
- Displacement
- 4.399 l
- Revolutions at max torque
- 2200 rpm
- Emission level
- Tier 3
More technical details, like: vibration, turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
