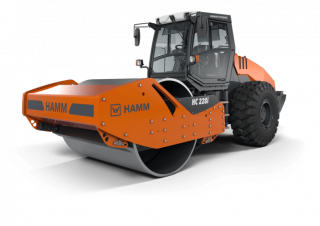

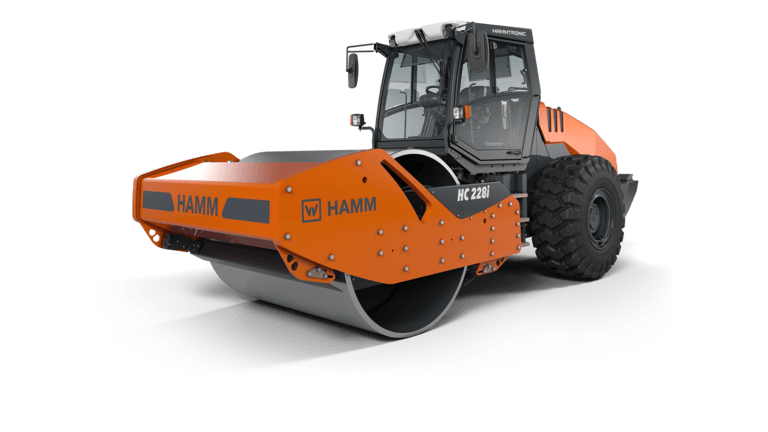

HC 228i P Hamm HC 228i P Specifications & Technical Data (2023—2026)
Visit Hamm live at
Technical specs - HC 228i P Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.61 t
- Transport length
- 6.85 m
- Transport width
- 2.35 m
- Transport height
- 3.3 m
- Travel speed
- 12.2 km/h
- Frequency
- 30 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.68 m
- Amplitude
- 1.85 mm
- Turning radius inside
- 5.16 m
- Statical line load
- 69 kg/cm
- Centrifugal force
- 331 kN
- Model series
- HC
- Engine manuf.
- Cummins
- Engine type
- B5.9CS4 210C
- Engine power
- 154 kW
- No. of cylinders
- 6
- Emission level
- MEE IV
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
