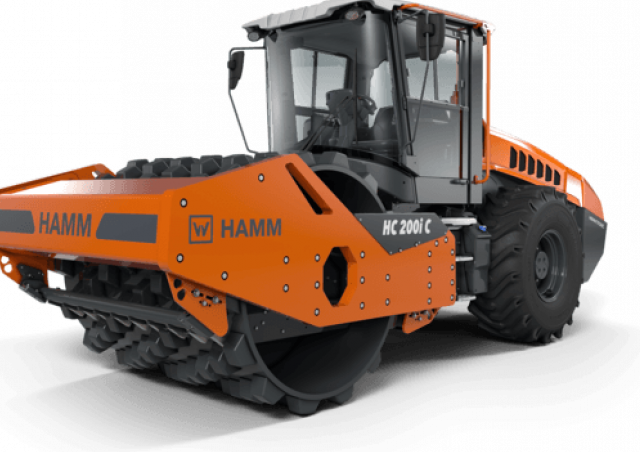

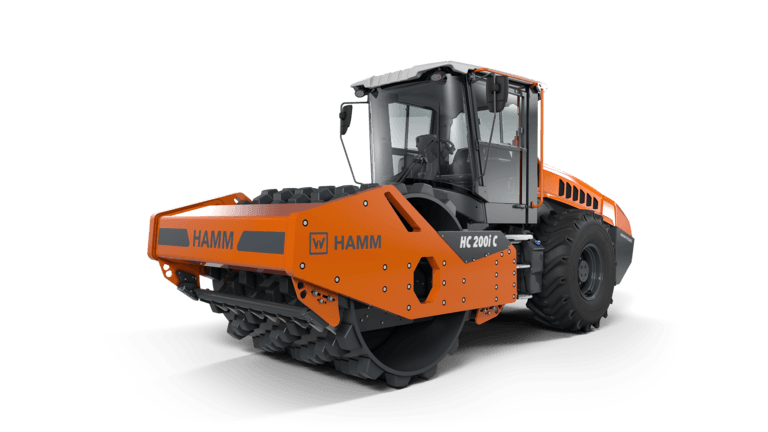

HC 200i C P Hamm HC 200i C P Specifications & Technical Data (2022—2026)
Visit Hamm live at
Technical specs - HC 200i C P Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.65 t
- Transport length
- 6.66 m
- Transport width
- 2.47 m
- Transport height
- 3.06 m
- Travel speed
- 11.5 km/h
- Frequency
- 30 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.79 m
- Amplitude
- 2.1 mm
- Turning radius inside
- 4.278 m
- Statical line load
- 63.36 kg/cm
- Centrifugal force
- 350 kN
- Model series
- HC
- Engine manuf.
- Deutz
- Engine type
- TCD 6.1 L6
- Engine power
- 160 kW
- No. of cylinders
- 4
- Emission level
- EU Stage V / EPA Tier 4
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
Yes
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
Hamm HC 200i C P FAQ
How much does the Hamm HC 200i C P weigh?
What are the transport dimensions of the Hamm HC 200i C P single-drum roller?
What is the travel speed of the Hamm HC 200i C P single-drum roller?
What is the inside turning radius of the Hamm HC 200i C P?
What are the compaction capabilities of the Hamm HC 200i C P single-drum roller?
What are the roller specifications of the Hamm HC 200i C P single-drum roller?
