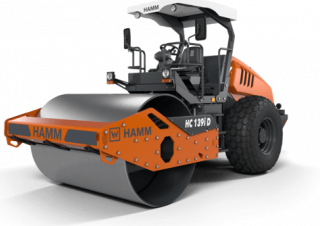

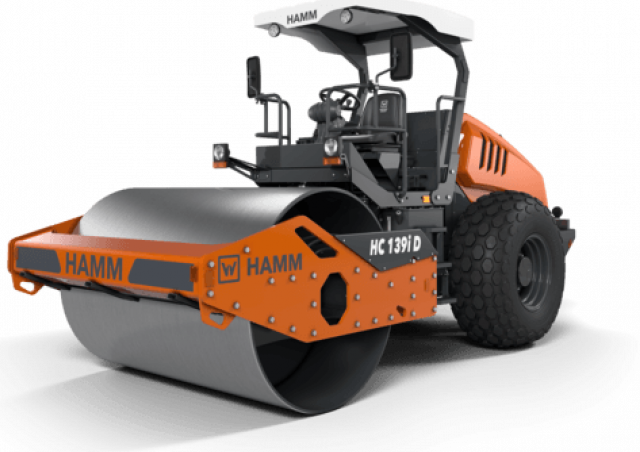

HC 139iD Hamm HC 139iD Specifications & Technical Data (2022—2026)
Visit Hamm live at
Technical specs - HC 139iD Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.96 t
- Transport length
- 5.93 m
- Transport width
- 2.28 m
- Transport height
- 3.06 m
- Travel speed
- 12 km/h
- Frequency
- 40 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.504 m
- Amplitude
- 1.82 mm
- Turning radius inside
- 3.883 m
- Statical line load
- 33.8 kg/cm
- Centrifugal force
- 240 kN
- Model series
- HC
- Engine manuf.
- Cummins
- Engine type
- QSB 4.5 CIVD1
- Engine power
- 90 kW
- No. of cylinders
- 4
- Emission level
- CEV Stage IV
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
No
