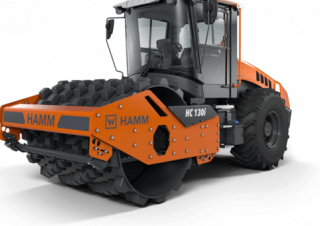

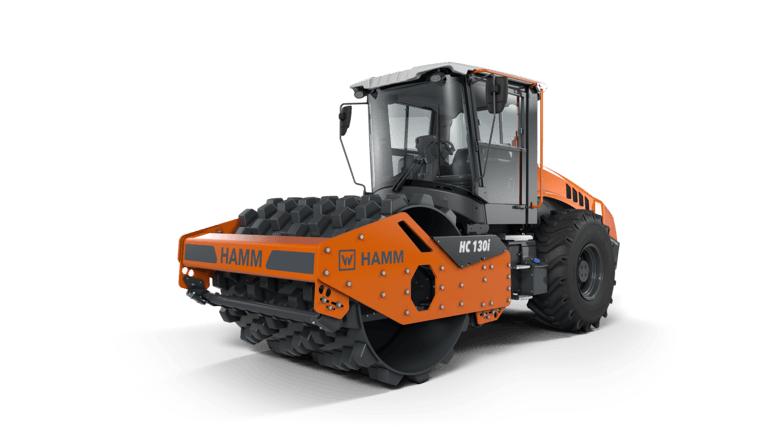

HC 130i P Hamm HC 130i P Specifications & Technical Data (2022—2026)
Visit Hamm live at
Technical specs - HC 130i P Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.49 t
- Transport length
- 6.12 m
- Transport width
- 2.47 m
- Transport height
- 3.05 m
- Travel speed
- 11.9 km/h
- Roller width
- 2.14 m
- Rollers Ø
- 1.687 m
- Amplitude
- 1.9 mm
- Turning radius inside
- 4.131 m
- Statical line load
- 36.8 kg/cm
- Centrifugal force
- 290 kN
- Model series
- HC
- Engine manuf.
- John Deere
- Engine type
- JDPS 4045PSS
- Engine power
- 119.6 kW
- Revolutions at max torque
- 2000 rpm
- No. of cylinders
- 4
- Emission level
- EU Stage V / EPA Tier 4
More technical details, like: vibration, drive, frequency, turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
Yes
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
Hamm HC 130i P FAQ
How much does the Hamm HC 130i P weigh?
What are the transport dimensions of the Hamm HC 130i P single-drum roller?
What is the travel speed of the Hamm HC 130i P single-drum roller?
What is the turning radius inside of the Hamm HC 130i P single-drum roller?
What are the compaction capabilities of the Hamm HC 130i P single-drum roller?
What are the roller specifications of the Hamm HC 130i P single-drum roller?
