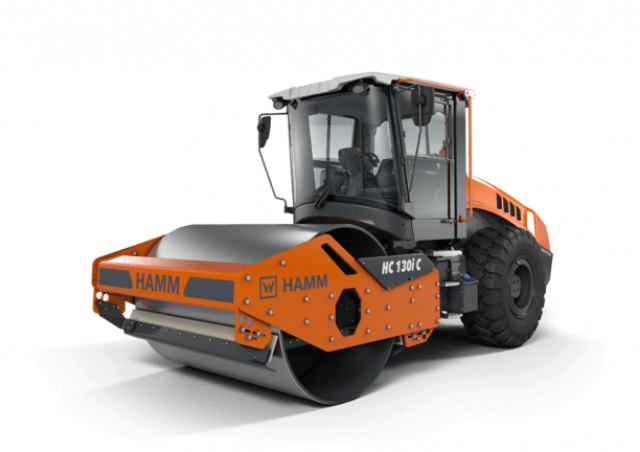

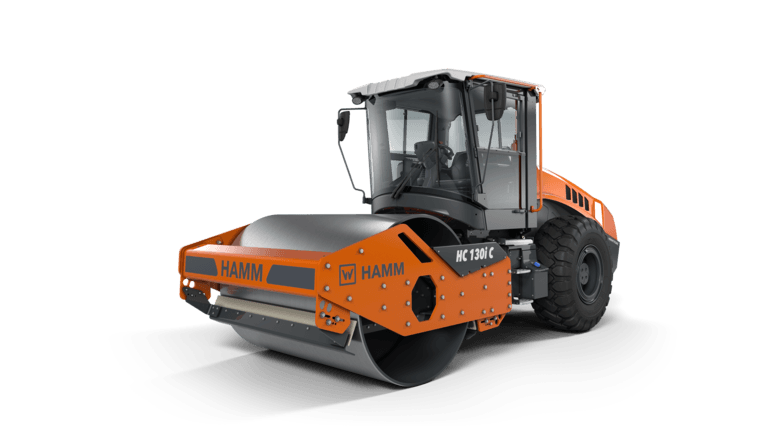

HC 130i C VA Hamm HC 130i C VA Specifications & Technical Data (2025—2026)
Visit Hamm live at
Technical specs - HC 130i C VA Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.785 t
- Transport length
- 6.117 m
- Transport width
- 2.474 m
- Transport height
- 3.054 m
- Travel speed
- 12.1 km/h
- Frequency
- 30 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.504 m
- Amplitude
- 2.1 mm
- Turning radius inside
- 4.131 m
- Statical line load
- 38/60 kg/cm
- Centrifugal force
- 320 kN
- Model series
- HC
- Engine manuf.
- Isuzu
- Engine type
- AQ-6HK1X
- Engine power
- 119.6 kW
- Revolutions at max torque
- 2000 rpm
- No. of cylinders
- 4
- Emission level
- EU Stage V / EPA Tier 4
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
No
