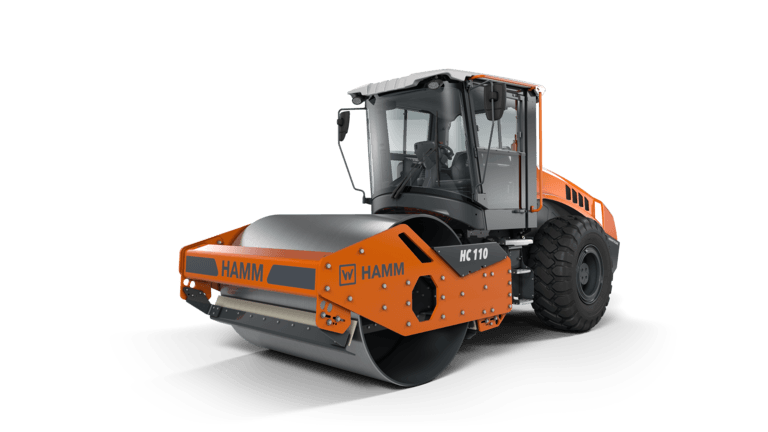

HC 110 Hamm HC 110 Specifications & Technical Data (2022—2026)
Visit Hamm live at
Technical specs - HC 110 Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.77 t
- Transport length
- 6.12 m
- Transport width
- 2.47 m
- Transport height
- 3.05 m
- Travel speed
- 11.8 km/h
- Frequency
- 36 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.504 m
- Amplitude
- 1.95 mm
- Turning radius inside
- 4.131 m
- Statical line load
- 29.74 kg/cm
- Centrifugal force
- 250 kN
- Model series
- HC
- Engine manuf.
- John Deere
- Engine type
- JDPS 4045PTE
- Engine power
- 101 kW
- No. of cylinders
- 4
- Emission level
- EU Stage IIIA / EPA Tier 3
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
