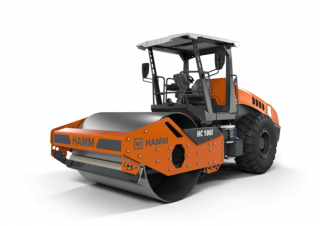

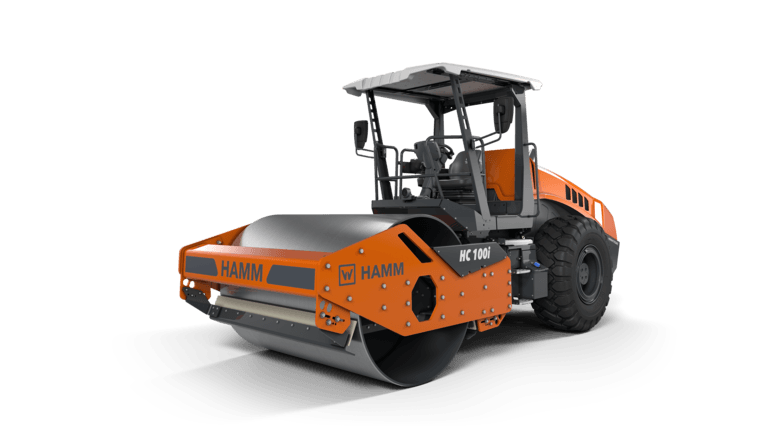

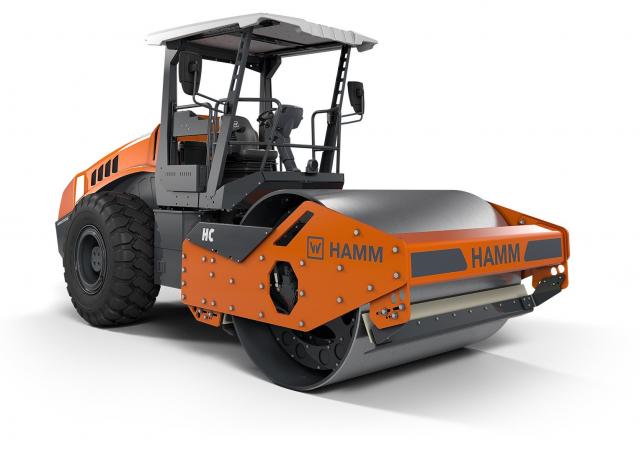

HC 100i Hamm HC 100i Specifications & Technical Data (2023—2026)
Visit Hamm live at
Technical specs - HC 100i Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.04 t
- Transport length
- 6.12 m
- Transport width
- 2.47 m
- Transport height
- 3.05 m
- Travel speed
- 11.8 km/h
- Frequency
- 33 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.95 mm
- Turning radius inside
- 4.13 m
- Statical line load
- 29.9 kg/cm
- Centrifugal force
- 250 kN
- Model series
- HC
- Engine manuf.
- John Deere
- Engine type
- JDPS 4045EWS
- Engine power
- 85 kW
- No. of cylinders
- 4
- Emission level
- EU V / EPA Tier 4
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm HC 100i FAQ
How much does the Hamm HC 100i weigh?
What are the transport dimensions of the Hamm HC 100i single-drum roller?
What is the travel speed of the Hamm HC 100i single-drum roller?
What is the inside turning radius of the Hamm HC 100i?
What are the compaction capabilities of the Hamm HC 100i single-drum roller?
What are the roller specifications of the Hamm HC 100i single-drum roller?
How much is a Hamm HC 100i Single-drum Roller (2023u20132025) worth?
