H 18i Hamm H 18i Specifications & Technical Data (2014—2026)

Model rating
1,00 / 10

Weight: 18.41t – Transport length: 6.6m – Transport width: 2.31m – Transport height: 2.97m – Vibration: e – Travel speed: 12km/h

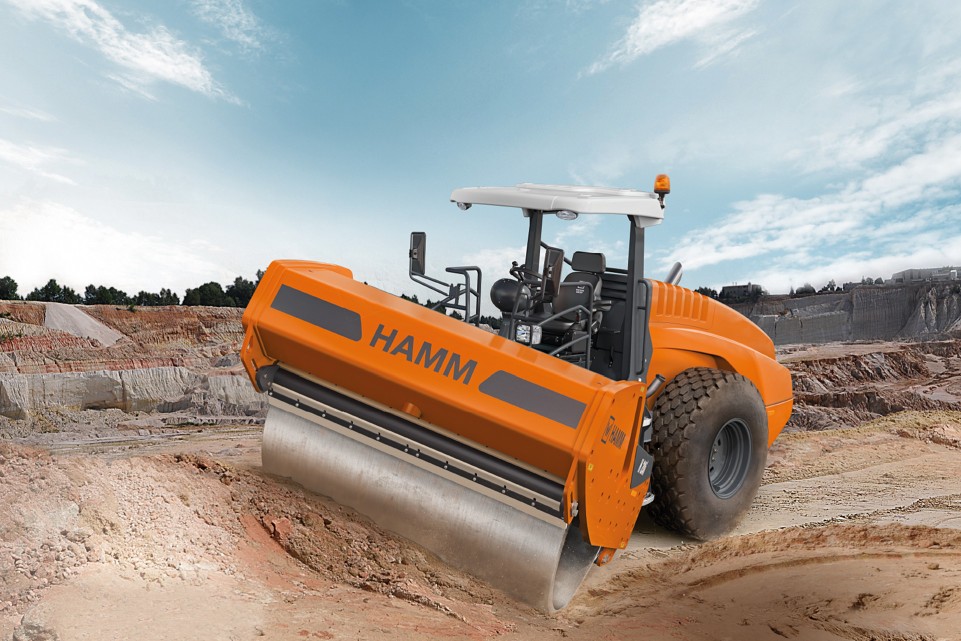

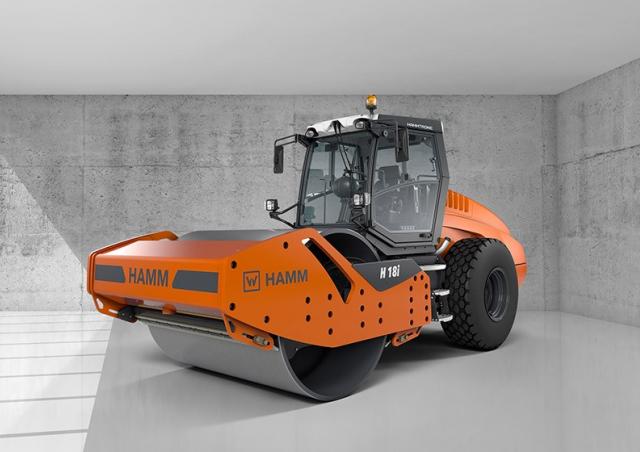

Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i
Rollers Single-drum Rollers Hamm H 18i

Visit Hamm live at

Technical specs - H 18i Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.41 t
Transport length
6.6 m
Transport width
2.31 m
Transport height
2.97 m
Vibration
e
Travel speed
12 km/h
Frequency
30 Hz
Roller width
2.14 m
Rollers Ø
1.6 m
Amplitude
2.05 mm
Turning radius inside
4.2 m
Statical line load
55.6 kg/cm
Centrifugal force
331 kN
Model series
H
Engine manuf.
Deutz
Engine type
TCD 6.1 L6
Engine power
160 kW
Displacement
6.057 l
Revolutions at max torque
2300 rpm
No. of cylinders
6
Emission level
Stage V

More technical details, like: drive, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Hamm H 18i FAQ

When was the Hamm H 18i manufactured?

The Hamm H 18i was first produced in 2014.

How much does the Hamm H 18i weigh?

The Hamm H 18i weighs 18.41 tons.

What are the transport dimensions of the Hamm H 18i single-drum roller?

The Hamm H 18i has a transport length of 6.6 meters, a transport width of 2.31 meters, and a transport height of 2.97 meters.

What is the travel speed of the Hamm H 18i single-drum roller?

The Hamm H 18i has a travel speed of 12 km/h.

What is the inside turning radius of the Hamm H 18i?

The Hamm H 18i has an inside turning radius of 4.2 meters.

What are the compaction capabilities of the Hamm H 18i single-drum roller?

The Hamm H 18i features a single vibration system operating at a frequency of 30 Hz with an amplitude of 2.05 mm, generating a centrifugal force of 331 kN.

What are the roller specifications of the Hamm H 18i single-drum roller?

The Hamm H 18i has a roller width of 2.14 meters and a roller diameter of 1.6 meters.

How much is a Hamm H 18i Single-drum Roller (2014u20132025) worth?

The residual value of the Hamm H 18i depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hamm H 18i overview

Steering and Brake system

H 18i / H 18i P Features

Ergonomic driver seat for perfect all-round visibility Clear information display Excellent hill climbing ability via self-locking differential 3-point swivel joint for optimum driving comfort Hydrostatic steering Optimum ease of maintenance, long service intervals
