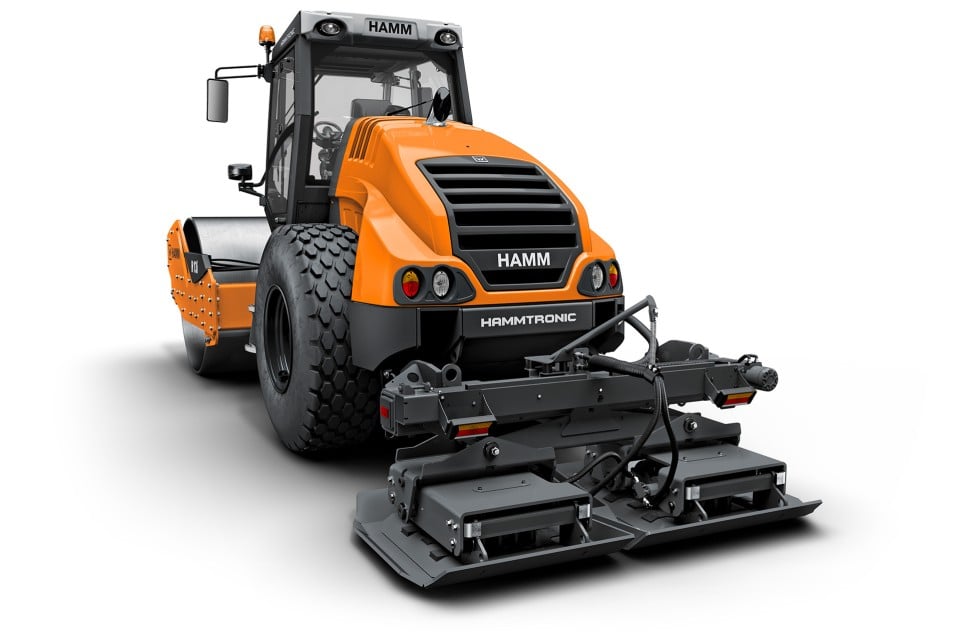

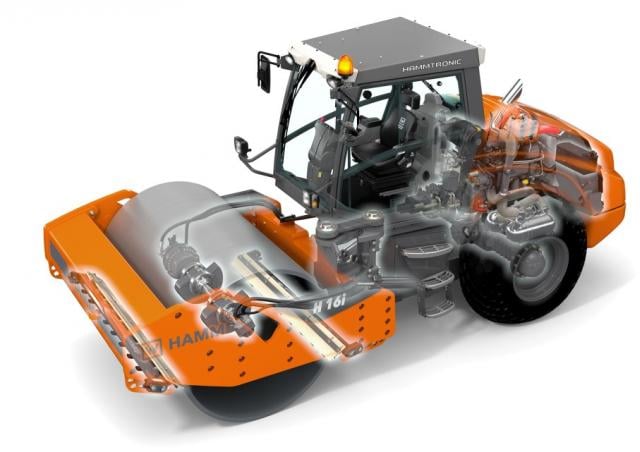

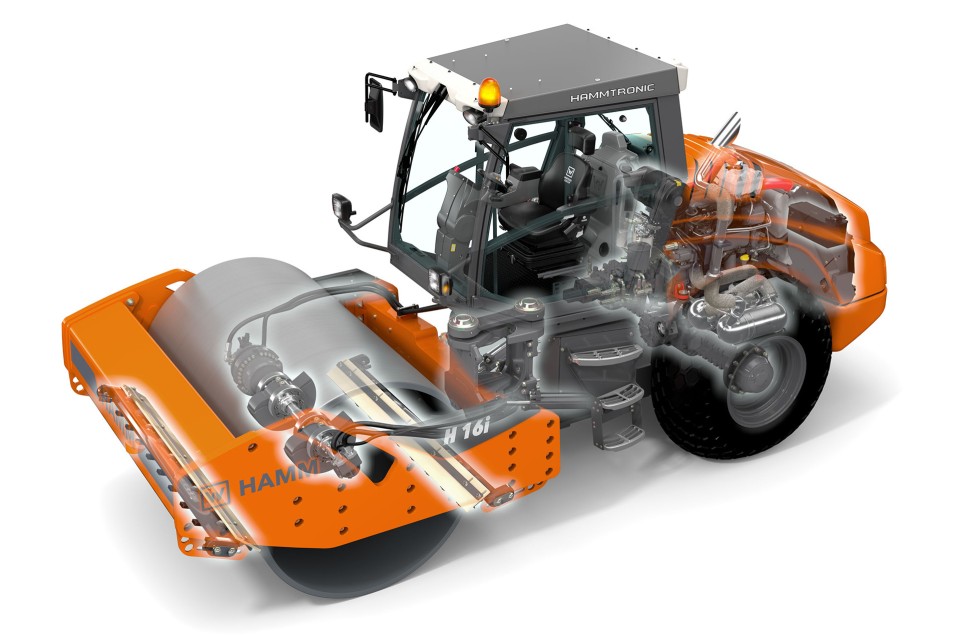

H 16i P Hamm H 16i P Specifications & Technical Data (2014—2021)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hamm live at
Technical specs - H 16i P Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.89 t
- Transport length
- 5.95 m
- Transport width
- 2.31 m
- Transport height
- 2.96 m
- Vibration
- e
- Travel speed
- 10 km/h
- Frequency
- 31 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.674 m
- Amplitude
- 2.13 mm
- Turning radius inside
- 3.87 m
- Centrifugal force
- 328 kN
- Model series
- H
- Engine manuf.
- Deutz
- Engine type
- TCD 4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.1 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 4
- Emission level
- Stage IV
More technical details, like: drive, turning radius outside, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm H 16i P FAQ
How much does the Hamm H 16i P weigh?
What are the transport dimensions of the Hamm H 16i P single-drum roller?
What is the travel speed of the Hamm H 16i P single-drum roller?
What is the turning radius inside of the Hamm H 16i P single-drum roller?
What are the compaction capabilities of the Hamm H 16i P single-drum roller?
What are the roller specifications of the Hamm H 16i P single-drum roller?
How much is a Hamm H 16i P Single-drum Roller (2014u20132021) worth?
