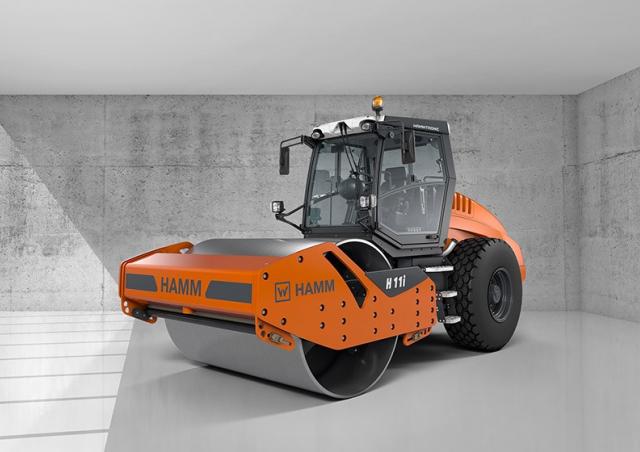

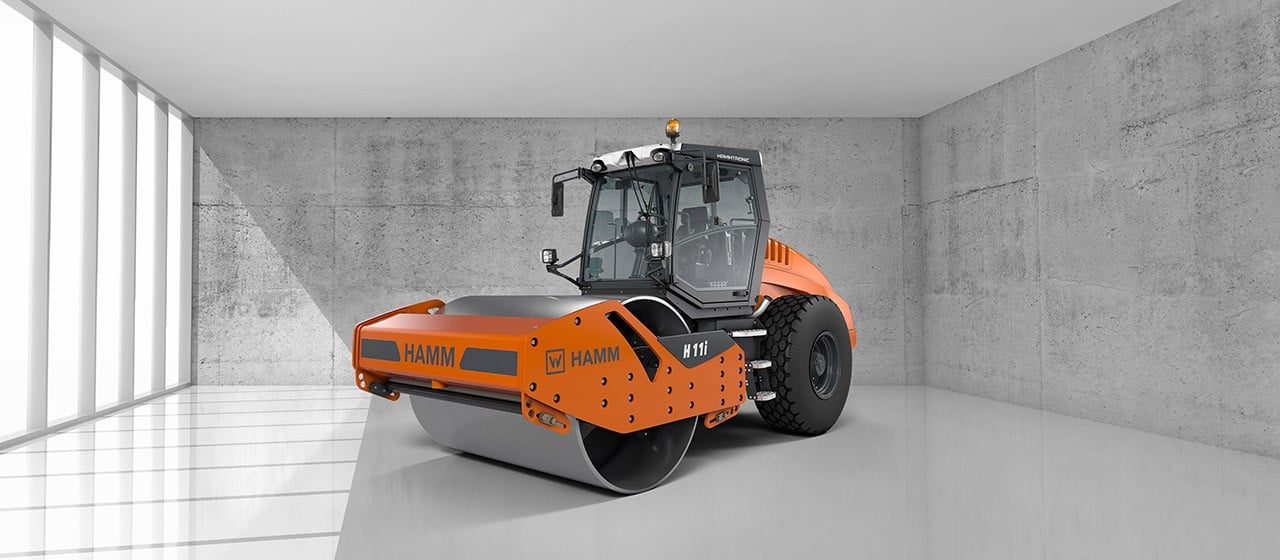

H 11i Hamm H 11i Specifications & Technical Data (2014—2021)
Visit Hamm live at
Technical specs - H 11i Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.88 t
- Transport length
- 5.85 m
- Transport width
- 2.28 m
- Transport height
- 2.96 m
- Vibration
- e
- Travel speed
- 12 km/h
- Frequency
- 36 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.504 m
- Amplitude
- 2.04 mm
- Turning radius inside
- 3.87 m
- Statical line load
- 27.5 kg/cm
- Centrifugal force
- 246 kN
- Model series
- H
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 85 kW
- Displacement
- 3.6 l
- No. of cylinders
- 4
- Emission level
- EU V / EPA Tier 4
More technical details, like: drive, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

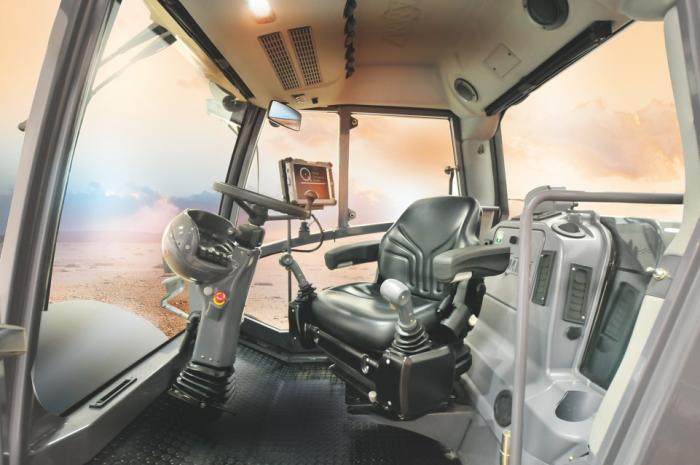

Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
