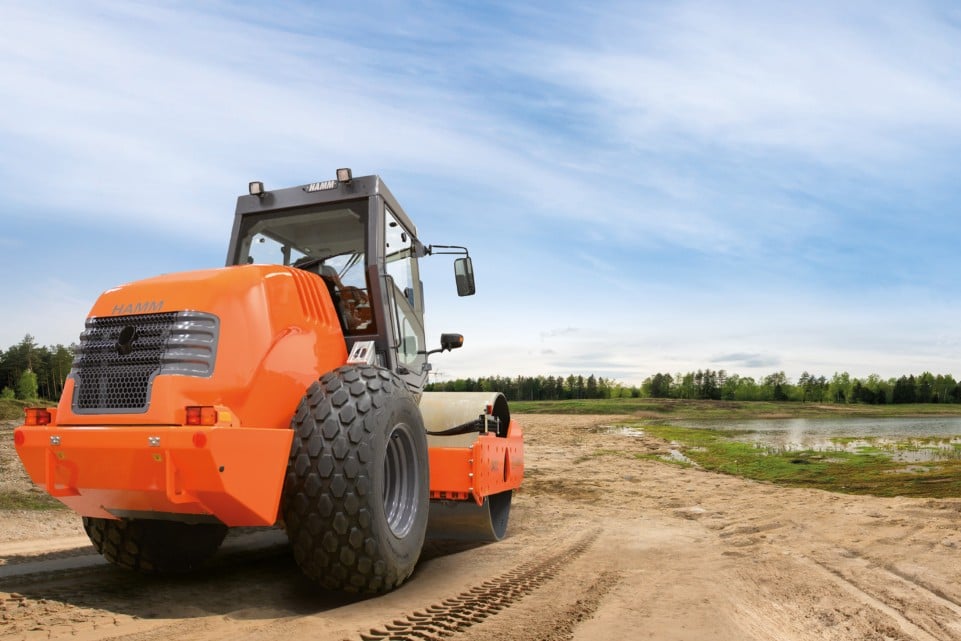

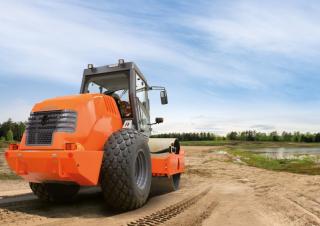

    Hamm 3520 P Specifications & Technical Data (2008-2021)

    Rate this machine now!

    Weight: 20t – Transport length: 6.21m – Transport width: 2.39m – Transport height: 3.05m – Vibration: e – Drive: A

    Technical specs - 3520 P Hamm

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 20 t
    Transport length 6.21 m
    Transport width 2.39 m
    Transport height 3.05 m
    Vibration e
    Drive A
    Travel speed 11,1 km/h
    Frequency 27/30 Hz
    Roller width 2.22 m
    Rollers Ø 1,784 m
    Amplitude 1,93/1,15 mm
    Turning radius inside 4,18 m
    Centrifugal force 331 kN
    Engine manuf. Deutz
    Engine type TCD 2012 L06 2V
    Engine power 155 kW
    Engine power 210.8 HP
    Displacement 6.057 l
    Revolutions at max torque 2300 rpm
    No. of cylinders 6
    Emission level III A
    Turning radius outside ###
    Statical line load ###
    Dimension lxwxh ###
    Max. torque ###
    Cylinder bore x stroke ###
    Weight ###

    Basic model with ROPS cabin

    3520 P Hamm - Special equipment

    • Diesel particulate filter
    • Sheep foot
    • Oscillation
    • Compression control
    • Aircondition

    Download data sheets - Hamm 3520 P
