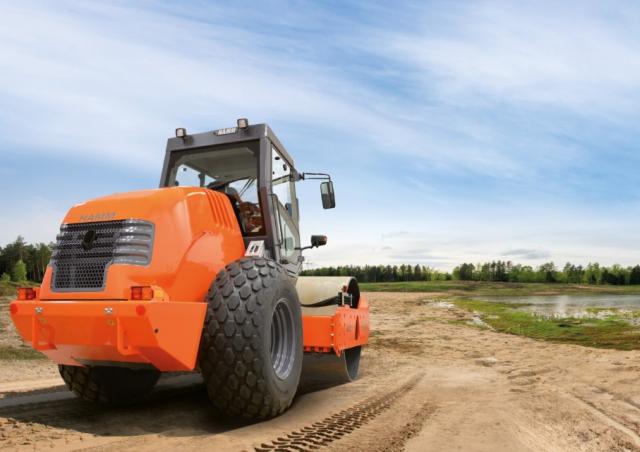

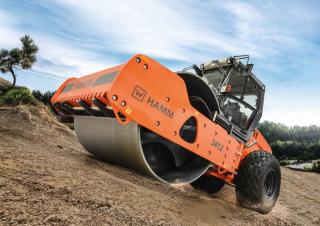

3520 HT-P Hamm 3520 HT-P Specifications & Technical Data (2008—2016)
-
Model rating
- 8,00 / 10
.jpg)
.jpg)
Visit Hamm live at
Technical specs - 3520 HT-P Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20 t
- Transport length
- 6.21 m
- Transport width
- 2.39 m
- Transport height
- 3.05 m
- Vibration
- e
- Drive
- A
- Travel speed
- 13 km/h
- Frequency
- 30 Hz
- Roller width
- 2.22 m
- Rollers Ø
- 1.784 m
- Amplitude
- 1.93 mm
- Turning radius inside
- 4.18 m
- Centrifugal force
- 331 kN
- Model series
- 3000
- Engine manuf.
- Deutz
- Engine type
- TCD 2012 L06 2V
- Engine power
- 155 kW
- Displacement
- 6.057 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 6
- Emission level
- III A
More technical details, like: turning radius outside, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
