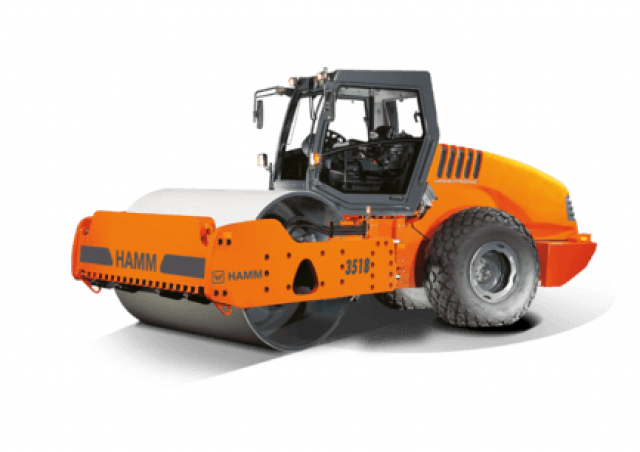

3518 HT Hamm 3518 HT Specifications & Technical Data (2021—2026)
Visit Hamm live at
Technical specs - 3518 HT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 17.83 t
- Transport length
- 6.21 m
- Transport width
- 2.39 m
- Transport height
- 2.98 m
- Travel speed
- 13 km/h
- Frequency
- 30 Hz
- Roller width
- 2.22 m
- Rollers Ø
- 1.6 m
- Amplitude
- 2 mm
- Turning radius inside
- 4.18 m
- Statical line load
- 48.6 kg/cm
- Centrifugal force
- 331 kN
- Model series
- 3000
- Engine manuf.
- Deutz
- Engine type
- TCD 2012 L06 2V
- Engine power
- 155 kW
- Emission level
- EU Stage IIIA / EPA Tier 3
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm 3518 HT FAQ
How much does the Hamm 3518 HT weigh?
What are the transport dimensions of the Hamm 3518 HT single-drum roller?
What is the travel speed of the Hamm 3518 HT?
What is the turning radius inside of the Hamm 3518 HT single-drum roller?
What are the compaction capabilities of the Hamm 3518 HT single-drum roller?
What are the roller specifications of the Hamm 3518 HT single-drum roller?
How much is a Hamm 3518 HT Single-drum Roller (2021u20132025) worth?
