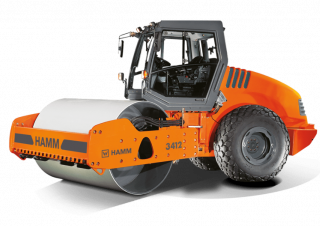

3412 Hamm 3412 Specifications & Technical Data (2020—2026)
Visit Hamm live at
Technical specs - 3412 Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.2 t
- Transport length
- 5.71 m
- Transport width
- 2.25 m
- Transport height
- 2.99 m
- Vibration
- e
- Drive
- E
- Travel speed
- 11.7 km/h
- Frequency
- 40 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.504 m
- Amplitude
- 1.91 mm
- Turning radius inside
- 3.69 m
- Statical line load
- 31.3 kg/cm
- Centrifugal force
- 256 kN
- Model series
- 3000
- Engine manuf.
- Deutz
- Engine type
- TCD 2012 L04 2V
- Engine power
- 100 kW
- No. of cylinders
- 4
- Emission level
- Stage IIIA/EPA Tier 3
More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
