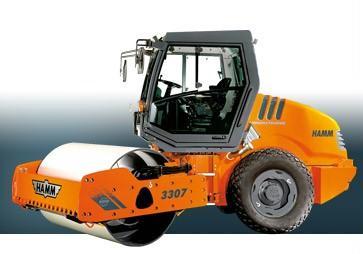

3307 HT Hamm 3307 HT Specifications & Technical Data (2004—2015)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hamm live at
Technical specs - 3307 HT Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7 t
- Transport length
- 4.68 m
- Transport width
- 2.1 m
- Transport height
- 2.79 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12.5 km/h
- Frequency
- 42 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.216 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 3.06 m
- Statical line load
- 23.3 kg/cm
- Model series
- 3000
- Engine manuf.
- Deutz
- Engine type
- BF4M2011
- Engine power
- 65 kW
- Revolutions at max torque
- 2880 rpm
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
