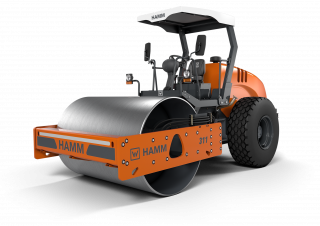

311 Hamm 311 Specifications & Technical Data (2021—2026)
Visit Hamm live at
Technical specs - 311 Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11 t
- Transport length
- 5.63 m
- Transport width
- 2.26 m
- Transport height
- 3.13 m
- Travel speed
- 12 km/h
- Frequency
- 40 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.504 m
- Amplitude
- 1.8 mm
- Turning radius inside
- 4.02 m
- Statical line load
- 29 kg/cm
- Centrifugal force
- 240 kN
- Model series
- 300
- Engine manuf.
- Cummins
- Engine type
- 4BT AA 3.9
- Engine power
- 74 kW
- Displacement
- 3.9 l
- No. of cylinders
- 4
- Emission level
- CEV III
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Hamm 311 FAQ
How much does the Hamm 311 single-drum roller weigh?
What are the transport dimensions of the Hamm 311 single-drum roller?
What is the travel speed of the Hamm 311 single-drum roller?
What is the inside turning radius of the Hamm 311 single-drum roller?
What are the compaction capabilities of the Hamm 311 single-drum roller?
What are the roller specifications of the Hamm 311 single-drum roller?
How much is a Hamm 311 Single-drum Roller (2021u20132025) worth?
