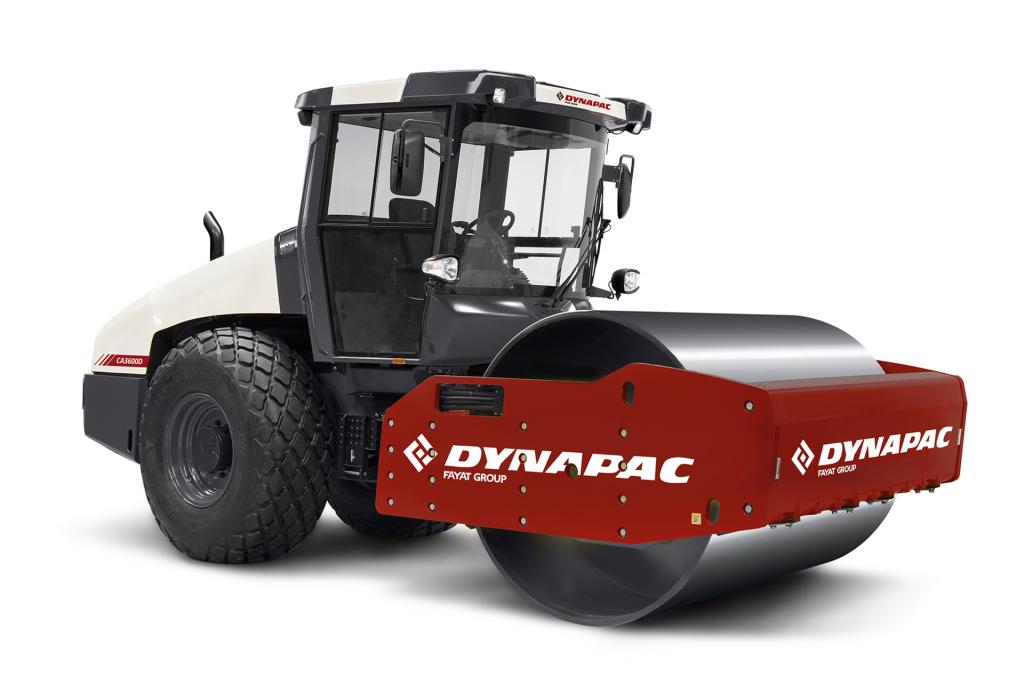

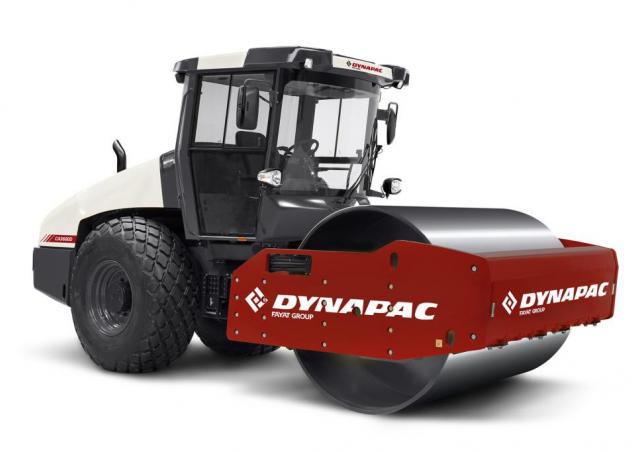

CA3600D Dynapac CA3600D Specifications & Technical Data (2023—2026)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CA3600D Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14 t
- Transport length
- 5.99 m
- Transport width
- 2.34 m
- Transport height
- 2.88 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12 km/h
- Frequency
- 34 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.52 m
- Turning radius outside
- 5.6 m
- Turning radius inside
- 3.3 m
- Statical line load
- 36 kg/cm
- Centrifugal force
- 280 kN
- Model series
- CA
- Engine manuf.
- Deutz
- Engine type
- TCD2012L06
- Engine power
- 128 kW
- Emission level
- IIIA/T3
More technical details, like: amplitude, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
