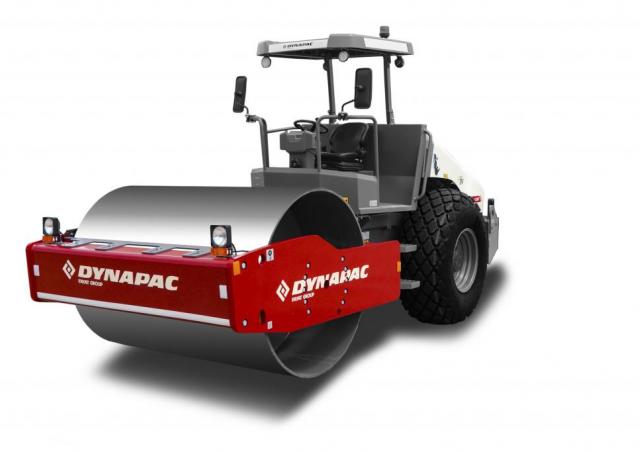

CA305D Rhino Dynapac CA305D Rhino Specifications & Technical Data (2023—2026)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CA305D Rhino Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.8 t
- Transport length
- 5.6 m
- Transport width
- 2.26 m
- Transport height
- 2.977 m
- Vibration
- e
- Drive
- A
- Travel speed
- 8 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Turning radius outside
- 5.515 m
- Turning radius inside
- 3.385 m
- Statical line load
- 32 kg/cm
- Centrifugal force
- 250 kN
- Model series
- CA
- Engine manuf.
- KOEL
- Engine type
- N/a
- Engine power
- 82 kW
- Emission level
- CEV-IV
More technical details, like: amplitude, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
