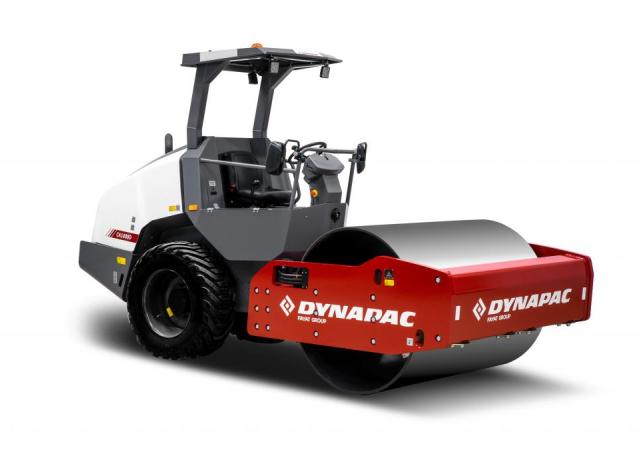

CA1400D Dynapac CA1400D Specifications & Technical Data (2026—2026)
.jpg)
Visit Dynapac live at
Technical specs - CA1400D Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.5 t
- Transport length
- 4.51 m
- Transport width
- 1.87 m
- Transport height
- 2.7 m
- Vibration
- e
- Drive
- A
- Travel speed
- 10 km/h
- Frequency
- 32 Hz
- Roller width
- 1.676 m
- Rollers Ø
- 1.219 m
- Amplitude
- 1.7 mm
- Turning radius outside
- 4.58 m
- Turning radius inside
- 2.9 m
- Statical line load
- 20 kg/cm
- Centrifugal force
- 114 kN
- Model series
- CA
- Engine manuf.
- Kubota
- Engine type
- V 3307 CR-TE5
- Engine power
- 55 kW
- Emission level
- Stage V
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
