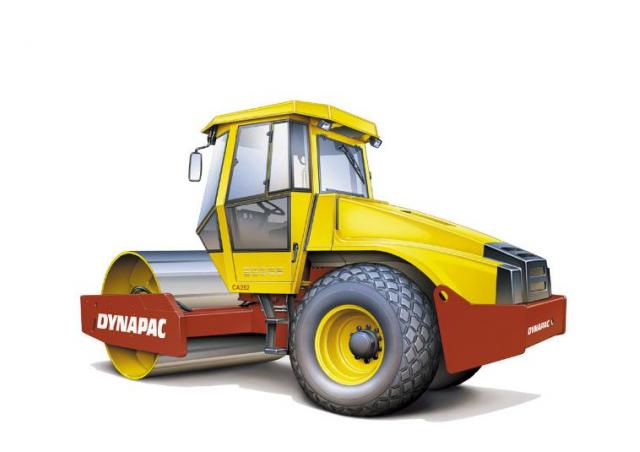

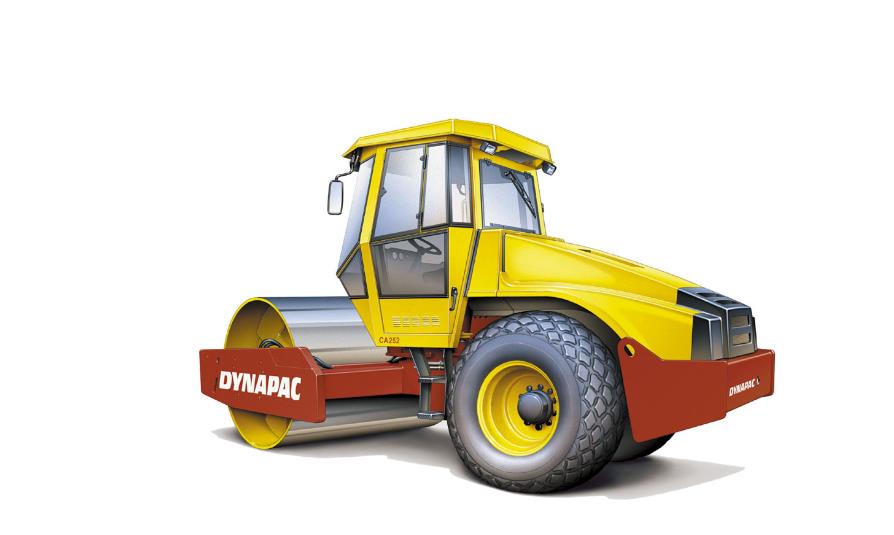

CA 252 Dynapac CA 252 Specifications & Technical Data (2010—2012)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CA 252 Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.4 t
- Transport length
- 5.6 m
- Transport width
- 2.324 m
- Transport height
- 3 m
- Vibration
- e
- Drive
- A
- Travel speed
- 17 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.523 m
- Amplitude
- 1.7 mm
- Turning radius outside
- 5.4 m
- Statical line load
- 27.7 kg/cm
- Model series
- CA
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 93 kW
- Displacement
- 4.5 l
- Emission level
- T4i
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
