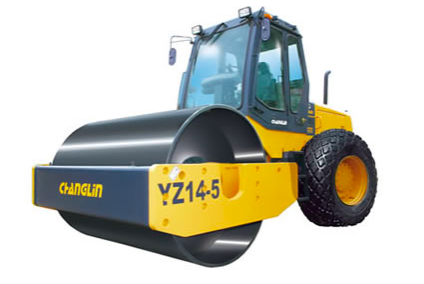

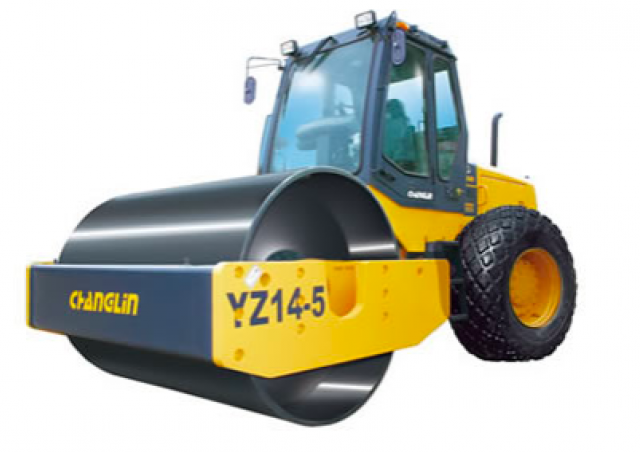

Changlin YZ14-5 Specifications & Technical Data (2017-2026)

Technical specs - YZ14-5 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14 t

Transport length: 5.943 m

Transport width: 2.3 m

Transport height: 3.03 m

Travel speed: 12.2 km/h

Frequency: 31 Hz

Roller width: 2.1 m

Amplitude: 1.8 mm

Model series: YZ

Engine manuf.: Yuchai

Engine type: YC6B120-T20

Engine power: 85 kW

More technical details, like: vibration, drive, rollers Ø, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, rollers Ø, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

YZ14-5 Changlin Specification for Europe (EN)

Changlin YZ14-5 FAQ

When was the Changlin YZ14-5 manufactured?

The Changlin YZ14-5 was first produced in 2017.

How much does the Changlin YZ14-5 weigh?

The Changlin YZ14-5 weighs 14 tons.

What are the transport dimensions of the Changlin YZ14-5 single-drum roller?

The Changlin YZ14-5 has a transport length of 5.94 meters, a transport width of 2.3 meters, and a transport height of 3.03 meters.

What is the travel speed of the Changlin YZ14-5 single-drum roller?

The Changlin YZ14-5 has a travel speed of 12.2 km/h.

What are the compaction performance specifications of the Changlin YZ14-5?

The Changlin YZ14-5 operates at a vibration frequency of 31 Hz and has an amplitude of 1.8 mm.

What is the roller width of the Changlin YZ14-5 single-drum roller?

The roller width of the Changlin YZ14-5 is 2.1 meters.

How much is a Changlin YZ14-5 Single-drum Roller (2017u20132025) worth?

The residual value of the Changlin YZ14-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
