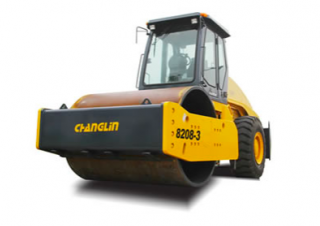

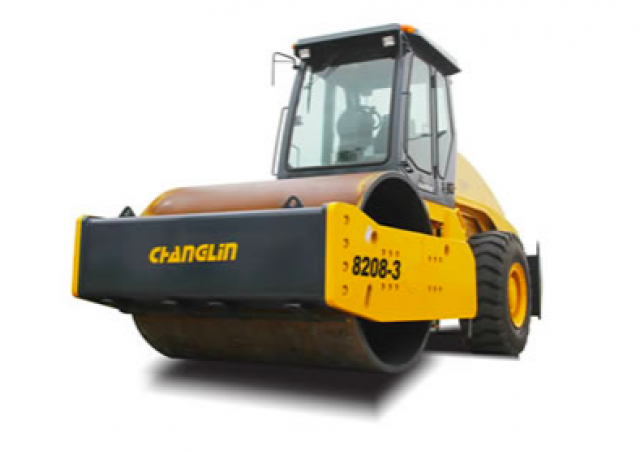

8208(K)-3 Changlin 8208(K)-3 Specifications & Technical Data (2017—2026)

Weight: 18t – Transport length: 6.336m – Transport width: 2.33m – Transport height: 3.15m – Travel speed: 12.4km/h – Frequency: 30Hz

Rollers Single-drum Rollers Changlin 8208(K)-3

Technical specs - 8208(K)-3 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18 t
Transport length
6.336 m
Transport width
2.33 m
Transport height
3.15 m
Travel speed
12.4 km/h
Frequency
30 Hz
Roller width
2.15 m
Rollers Ø
1.55 m
Turning radius outside
6.8 m
Model series
K

More technical details, like: vibration, drive, amplitude, turning radius inside, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: vibration, drive, amplitude, turning radius inside, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Changlin 8208(K)-3 FAQ

When was the Changlin 8208(K)-3 manufactured?

The Changlin 8208(K)-3 was first produced in 2017.

How much does the Changlin 8208(K)-3 weigh?

The Changlin 8208(K)-3 weighs 18 tons.

What are the transport dimensions of the Changlin 8208(K)-3 single-drum roller?

The Changlin 8208(K)-3 has a transport length of 6.34 meters, a transport width of 2.33 meters, and a transport height of 3.15 meters.

What is the travel speed of the Changlin 8208(K)-3 single-drum roller?

The Changlin 8208(K)-3 has a travel speed of 12.4 km/h.

What is the turning radius of the Changlin 8208(K)-3 single-drum roller?

The Changlin 8208(K)-3 has an outside turning radius of 6.8 meters.

What is the vibration frequency of the Changlin 8208(K)-3's compaction system?

The compaction system of the Changlin 8208(K)-3 operates at a frequency of 30 Hz.

What are the roller specifications of the Changlin 8208(K)-3 single-drum roller?

The Changlin 8208(K)-3 has a roller width of 2.15 meters and a roller diameter of 1.55 meters.

How much is a Changlin 8208(K)-3 Single-drum Roller (2017u20132025) worth?

The residual value of the Changlin 8208(K)-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
