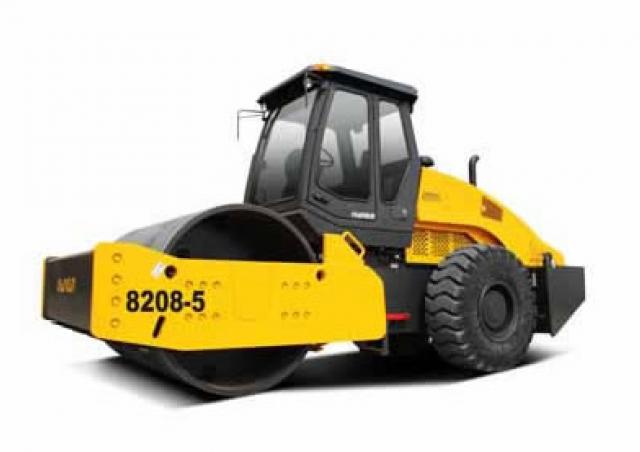

8208-5 Changlin 8208-5 Specifications & Technical Data (2017—2026)

Weight: 20t – Transport length: 6.438m – Transport width: 2.33m – Transport height: 3.135m – Travel speed: 11.8km/h – Frequency: 35Hz

Rollers Single-drum Rollers Changlin 8208-5

Technical specs - 8208-5 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
6.438 m
Transport width
2.33 m
Transport height
3.135 m
Travel speed
11.8 km/h
Frequency
35 Hz
Roller width
2.13 m
Rollers Ø
1.55 m
Amplitude
1.9 mm
Turning radius outside
6.8 m

More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Changlin 8208-5 FAQ

When was the Changlin 8208-5 manufactured?

The Changlin 8208-5 was first produced in 2017.

How much does the Changlin 8208-5 weigh?

The Changlin 8208-5 weighs 20 tons.

What are the transport dimensions of the Changlin 8208-5 single-drum roller?

The Changlin 8208-5 has a transport length of 6.44 meters, a transport width of 2.33 meters, and a transport height of 3.14 meters.

What is the travel speed of the Changlin 8208-5 single-drum roller?

The Changlin 8208-5 has a travel speed of 11.8 km/h.

What is the turning radius of the Changlin 8208-5 single-drum roller?

The Changlin 8208-5 has an outside turning radius of 6.8 meters.

What are the compaction performance specifications of the Changlin 8208-5?

The Changlin 8208-5 operates at a vibration frequency of 35 Hz with an amplitude of 1.9 mm.

What are the roller specifications of the Changlin 8208-5 single-drum roller?

The Changlin 8208-5 has a roller width of 2.13 meters and a roller diameter of 1.55 meters.
