8168(K)-3 Changlin 8168(K)-3 Specifications & Technical Data (2017—2026)
.png)

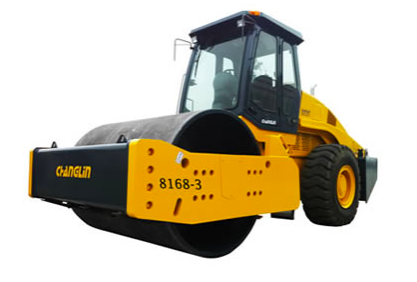

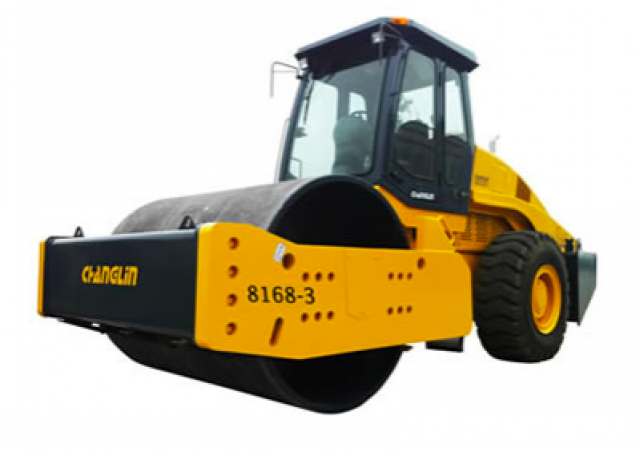

Technical specs - 8168(K)-3 Changlin
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16 t
- Transport length
- 6.166 m
- Transport width
- 2.33 m
- Transport height
- 3.2 m
- Travel speed
- 10.3 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 6.5 m
- Model series
- K
- Engine manuf.
- Weichai
- Engine type
- WP6G160E201
- Engine power
- 118 kW
- Max. torque
- 650 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 105x130 mm
More technical details, like: vibration, drive, rollers Ø, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
