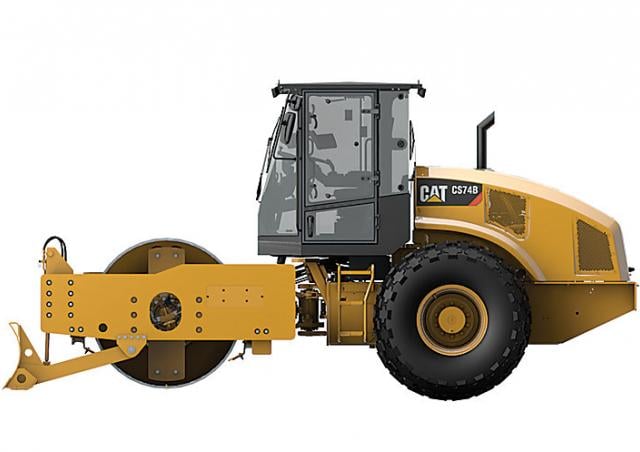

CS74B Caterpillar CS74B Specifications & Technical Data (2013—2026)
Technical specs - CS74B Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16 t
- Transport length
- 6.05 m
- Transport width
- 2.33 m
- Transport height
- 3.11 m
- Vibration
- e
- Drive
- E
- Travel speed
- 11.4 km/h
- Frequency
- 28 Hz
- Roller width
- 2.134 m
- Rollers Ø
- 1.534 m
- Amplitude
- 2.1 mm
- Turning radius outside
- 5.81 m
- Turning radius inside
- 3.68 m
- Statical line load
- 49.7 kg/cm
- Centrifugal force
- 332 kN
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C4.4
- Engine power
- 129.5 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 2200 rpm
- Emission level
- Tier 4 f
More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
Download specalog and datasheets (PDF)
Caterpillar CS74B FAQ
How much does the Caterpillar CS74B weigh?
What are the transport dimensions of the Caterpillar CS74B single-drum roller?
What is the travel speed of the Caterpillar CS74B single-drum roller?
What type of drive system does the Caterpillar CS74B have in its undercarriage?
What are the turning radius specifications of the Caterpillar CS74B?
What are the compaction capabilities of the Caterpillar CS74B single-drum roller?
What are the roller specifications of the Caterpillar CS74B single-drum roller?
