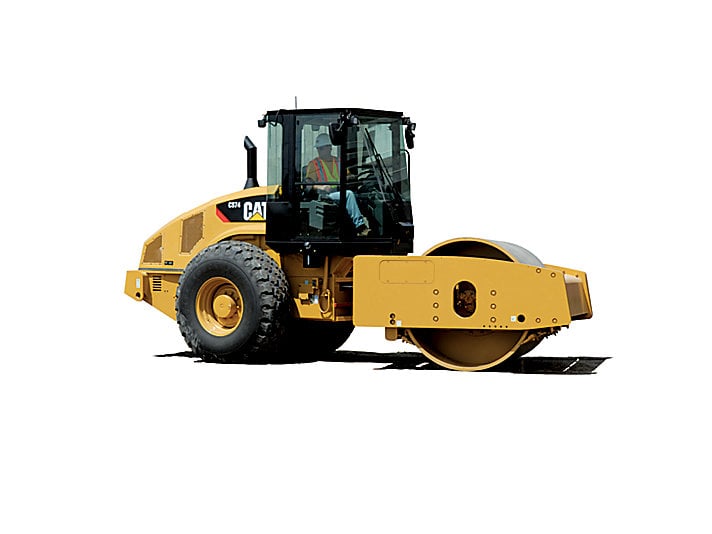

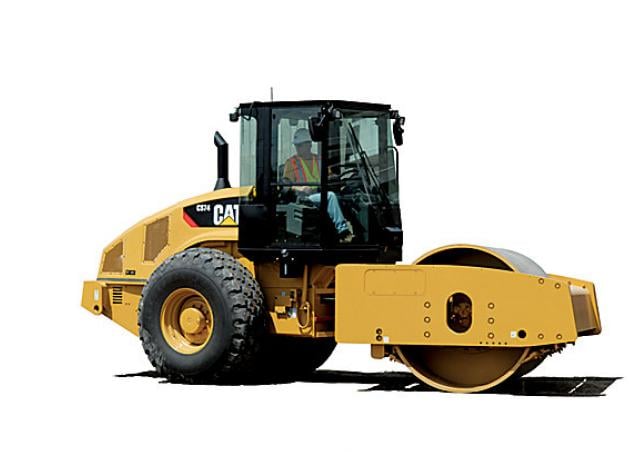

CS74 Caterpillar CS74 Specifications & Technical Data (2008—2014)
Technical specs - CS74 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.7 t
- Transport length
- 5.8 m
- Transport width
- 2.37 m
- Transport height
- 3.1 m
- Vibration
- e
- Drive
- E
- Travel speed
- 11.4 km/h
- Frequency
- 31.9 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.534 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.81 m
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C6.6
- Engine power
- 108 kW
- Displacement
- 6.6 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
Caterpillar CS74 FAQ
How much does the Caterpillar CS74 weigh?
What are the transport dimensions of the Caterpillar CS74 single-drum roller?
What is the travel speed of the Caterpillar CS74 single-drum roller?
What type of undercarriage drive does the Caterpillar CS74 have?
What is the turning radius of the Caterpillar CS74 single-drum roller?
What are the compaction capabilities of the Caterpillar CS74 single-drum roller?
What are the roller specifications of the Caterpillar CS74 single-drum roller?
How much is a Caterpillar CS74 Single-drum Roller (2008u20132014) worth?
