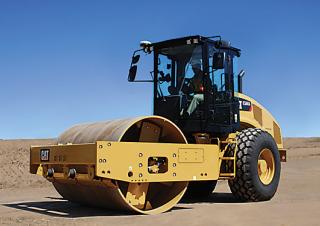

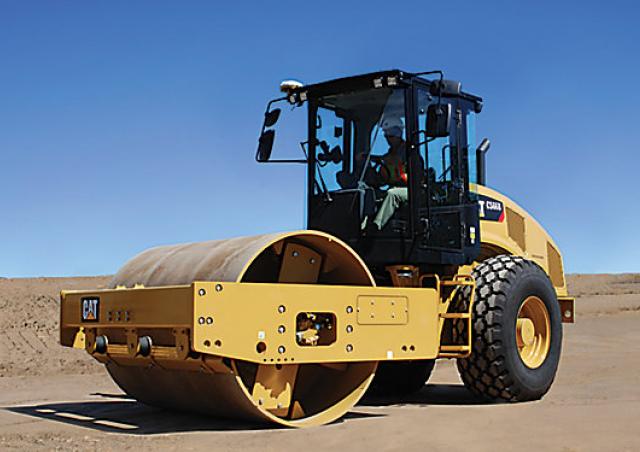

CS66B Caterpillar CS66B Specifications & Technical Data (2013—2023)

Model rating: 0,00 / 10

Weight: 12.36t – Transport length: 5.85m – Transport width: 2.33m – Transport height: 3.11m – Vibration: e – Drive: E

Rollers Single-drum Rollers Caterpillar CS66B

CS66B

Years of manufacture: 2013—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CS66B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.36 t

Transport length: 5.85 m

Transport width: 2.33 m

Transport height: 3.11 m

Vibration: e

Drive: E

Travel speed: 11.4 km/h

Frequency: 30.5 Hz

Roller width: 2.134 m

Rollers Ø: 1.534 m

Amplitude: 2.1 mm

Turning radius outside: 5.81 m

Turning radius inside: 3.68 m

Statical line load: 34.5 kg/cm

Centrifugal force: 301 kN

Model series: CS

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 117 kW

Displacement: 4.4 l

Emission level: Tier 4 f

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar CS66B FAQ

When was the Caterpillar CS66B manufactured?

The Caterpillar CS66B was manufactured from 2013 to 2023.

How much does the Caterpillar CS66B weigh?

The Caterpillar CS66B weighs 12.36 tons.

What are the transport dimensions of the Caterpillar CS66B single-drum roller?

The Caterpillar CS66B has a transport length of 5.85 meters, a transport width of 2.33 meters, and a transport height of 3.11 meters.

What is the travel speed of the Caterpillar CS66B single-drum roller?

The Caterpillar CS66B has a travel speed of 11.4 km/h.

What type of drive system does the Caterpillar CS66B have in its undercarriage?

The Caterpillar CS66B has a simple drive system in its undercarriage.

What are the turning radius specifications of the Caterpillar CS66B?

The Caterpillar CS66B has an outside turning radius of 5.81 meters and an inside turning radius of 3.68 meters.

What are the compaction specifications of the Caterpillar CS66B single-drum roller?

The Caterpillar CS66B has a single vibration system with a frequency of 30.5 Hz, an amplitude of 2.1 mm, generates a centrifugal force of 301 kN, and has a statical line load of 34.5 kg/cm.

What are the roller specifications of the Caterpillar CS66B single-drum roller?

The Caterpillar CS66B has a roller width of 2.13 meters and a roller diameter of 1.534 meters.

How much is a Caterpillar CS66B Single-drum Roller (2013u20132023) worth?

The residual value of the Caterpillar CS66B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar CS66B overview

Engine and powertrain

Cat Pod-Style Vibratory System

Virtually maintenance free: 3 year/3,000 hour vibratory bearing oil change; no scheduled oil sampling necessary Exclusive eccentric weight provides high reliability, smooth performance and low noise Optional variable frequency maximizes compaction performance while Eco-mode is engaged, providing reduced fuel consumption without sacrificing compaction performance

Sustainability Benefits Built Into Every Machine

Cat C4.4 with ACERT Technology and Cat C3.4B engines meet U.S. EPA Tier 4 Final and EU Stage IV emission standards. Eco-mode reduces fuel consumption. Extended service intervals for fluids and filters. Cat Compaction Control maximizes efficiency. Enhanced weight distribution and amplitude reduce number of passes required. Robust engine block and components increase life and reduce noise levels. Large cooling package reduces oil deterioration and varnishing of internal components as well as operating temperatures. Ecology drains reduce the risk of spills when draining machine fluids.

Roller

Padfoot Shell Kit

A padfoot shell kit is available for all smooth drum models, including the CS44B, CS54B, CS56B, CS64B, CS66B, CS68B, CS74B, CS76B, CS78B and CS79B. The padfoot shell kit provides versatility by allowing a smooth drum machine to compact semi-cohesive and cohesive materials. The kit comes with interchangeable smooth drum and padfoot scrapers. Oval pad design and square pad design are available.

Leveling Blade

A leveling blade is available for padfoot drum models CP44B, CP56B, CP68B, and CP74B, and smooth drum models CS44B, CS56B, CS66B, CS68B, and CS74B. The blade features a new bolt-on design, allowing its removal and reinstallation. The universal bumper design provides this capability. The leveling blade is controlled with thumb switches located on the propel lever, except on the CS/CP44B which utilizes a foot pedal.

Operator's station

Operator Comfort

Good visibility enables effective communication and promotes alertness. Long hours of operation can take a toll on operators. That's why Caterpillar designs operating stations that provide excellent control, visibility and comfort.
