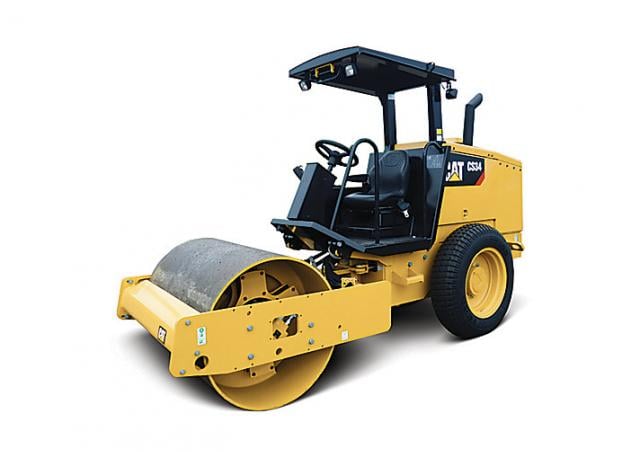

CS34 Caterpillar CS34 Specifications & Technical Data (2014—2017)
Technical specs - CS34 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.44 t
- Transport length
- 4.15 m
- Transport width
- 1.39 m
- Transport height
- 2.51 m
- Travel speed
- 8.9 km/h
- Frequency
- 35 Hz
- Roller width
- 1.27 m
- Rollers Ø
- 1.02 m
- Amplitude
- 1.3 mm
- Turning radius inside
- 2.62 m
- Statical line load
- 16 kg/cm
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C3.4B
- Engine power
- 55 kW
- Displacement
- 3.4 l
- Cylinder bore x stroke
- 99x110 mm
- Emission level
- Tier 4 f
More technical details, like: vibration, drive, turning radius outside, centrifugal force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
Caterpillar CS34 FAQ
How much does the Caterpillar CS34 weigh?
What are the transport dimensions of the Caterpillar CS34 single-drum roller?
What is the travel speed of the Caterpillar CS34 single-drum roller?
What is the inside turning radius of the Caterpillar CS34?
What are the compaction capabilities of the Caterpillar CS34 single-drum roller?
What are the roller specifications of the Caterpillar CS34 single-drum roller?
How much is a Caterpillar CS34 Single-drum Roller (2014u20132017) worth?
