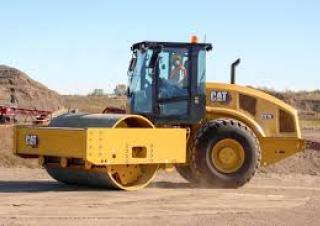

CS19 Caterpillar CS19 Specifications & Technical Data (2023—2026)
Technical specs - CS19 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 18.9 t
- Travel speed
- 11 km/h
- Frequency
- 28 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.54 m
- Amplitude
- 2.1 mm
- Turning radius inside
- 3.6 m
- Statical line load
- 63 kg/cm
- Centrifugal force
- 335 kN
- Engine manuf.
- Caterpillar
- Engine type
- C4.4
- Engine power
- 129 kW
- Displacement
- 4.4 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105x135 mm
- Emission level
- EU V
More technical details, like: transport length, transport width, transport height, vibration, drive, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
