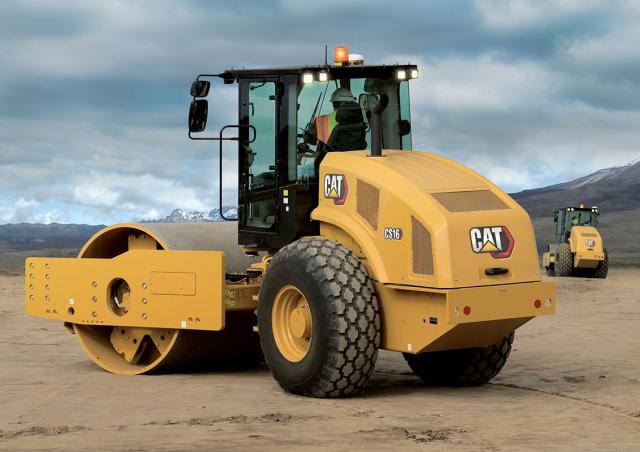

Caterpillar CS16 Specifications & Technical Data (2023-2026)

Technical specs - CS16 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Travel speed: 11 km/h

Frequency: 28 Hz

Roller width: 2.13 m

Rollers Ø: 1.54 m

Amplitude: 2.1 mm

Turning radius inside: 3.6 m

Statical line load: 49.7 kg/cm

Centrifugal force: 332 kN

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 129 kW

Displacement: 4.4 l

No. of cylinders: 4

Cylinder bore x stroke: 105x135 mm

Emission level: EU V

More technical details, like: transport length, transport width, transport height, vibration, drive, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: Yes
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: Yes

Caterpillar CS16 FAQ

When was the Caterpillar CS16 manufactured?

The Caterpillar CS16 was first produced in 2023.

How much does the Caterpillar CS16 weigh?

The Caterpillar CS16 weighs 16 tons.

What is the travel speed of the Caterpillar CS16 single-drum roller?

The Caterpillar CS16 has a travel speed of 11 km/h.

What is the inside turning radius of the Caterpillar CS16 single-drum roller?

The Caterpillar CS16 has an inside turning radius of 3.6 meters.

What are the compaction capabilities of the Caterpillar CS16 single-drum roller?

The Caterpillar CS16 operates at a frequency of 28 Hz with an amplitude of 2.1 mm, generates a centrifugal force of 332 kN, and has a statical line load of 49.7 kg/cm.

What are the roller specifications of the Caterpillar CS16 single-drum roller?

The Caterpillar CS16 has a roller width of 2.13 meters and a roller diameter of 1.54 meters.

How much is a Caterpillar CS16 Single-drum Roller (2023u20132025) worth?

The residual value of the Caterpillar CS16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
