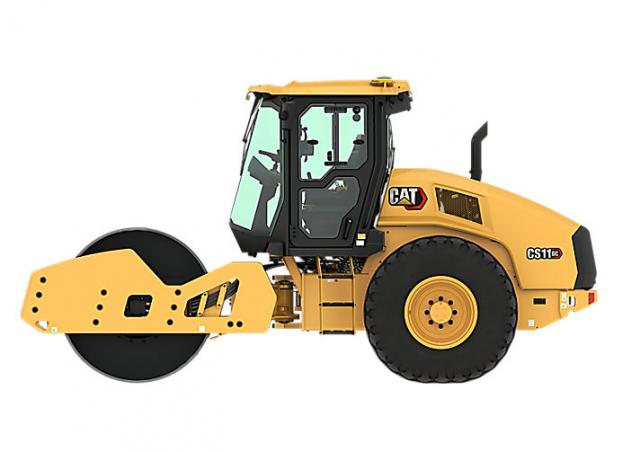

CS11GC Caterpillar CS11GC Specifications & Technical Data (2020—2026)
Technical specs - CS11GC Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.1 t
- Vibration
- e
- Drive
- E
- Travel speed
- 11.4 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.535 m
- Amplitude
- 2 mm
- Turning radius inside
- 3.86 m
- Statical line load
- 28.5 kg/cm
- Centrifugal force
- 249 kN
- Engine manuf.
- Caterpillar
- Engine type
- C3.6
- Engine power
- 90 kW
- Emission level
- EU V
More technical details, like: transport length, transport width, transport height, turning radius outside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
