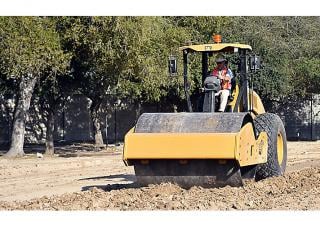

CS11GC Caterpillar CS11GC Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - CS11GC Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.8 t
- Transport length
- 5.7 m
- Transport width
- 2.3 m
- Transport height
- 2.99 m
- Travel speed
- 11.2 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.53 m
- Amplitude
- 2 mm
- Turning radius outside
- 3.86 m
- Centrifugal force
- 250 kN
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C4.4
- Engine power
- 83 kW
- Displacement
- 4.4 l
- Cylinder bore x stroke
- 127x105 mm
- Emission level
- Tier 4 f
More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
