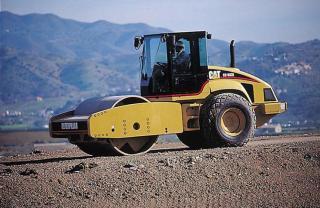

CS 683 E Caterpillar CS 683 E Specifications & Technical Data (2001—2007)

Weight: 18.8t – Transport length: 6m – Transport width: 2.46m – Transport height: 3.02m – Vibration: e – Drive: A

CS 683 E

Years of manufacture: 2001—2007

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CS 683 E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.8 t

Transport length: 6 m

Transport width: 2.46 m

Transport height: 3.02 m

Vibration: e

Drive: A

Travel speed: 12.2 km/h

Frequency: 30 Hz

Roller width: 2.13 m

Rollers Ø: 1.549 m

Amplitude: 1.8 mm

Turning radius outside: 5.81 m

Statical line load: 62.3 kg/cm

Model series: CS

Engine manuf.: Caterpillar

Engine type: 3056 ATAAC

Engine power: 134 kW

Displacement: 6 l

Revolutions at max torque: 2200 rpm

More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar CS 683 E FAQ

When was the Caterpillar CS 683 E manufactured?

The Caterpillar CS 683 E was manufactured from 2001 to 2007.

How much does the Caterpillar CS 683 E weigh?

The Caterpillar CS 683 E weighs 18.8 tons.

What are the transport dimensions of the Caterpillar CS 683 E?

The Caterpillar CS 683 E has a transport length of 6 meters, a transport width of 2.46 meters, and a transport height of 3.02 meters.

What is the travel speed of the Caterpillar CS 683 E single-drum roller?

The Caterpillar CS 683 E has a travel speed of 12.2 km/h.

What type of drive system does the Caterpillar CS 683 E have in its undercarriage?

The Caterpillar CS 683 E has an all-wheel drive system in its undercarriage.

What is the turning radius of the Caterpillar CS 683 E single-drum roller?

The Caterpillar CS 683 E has an outside turning radius of 5.81 meters.

What are the compaction capabilities of the Caterpillar CS 683 E single-drum roller?

The Caterpillar CS 683 E features a single vibration system operating at a frequency of 30 Hz with an amplitude of 1.8 mm and a statical line load of 62.3 kg/cm.

What are the roller specifications of the Caterpillar CS 683 E?

The Caterpillar CS 683 E has a roller width of 2.13 meters and a roller diameter of 1.549 meters.
