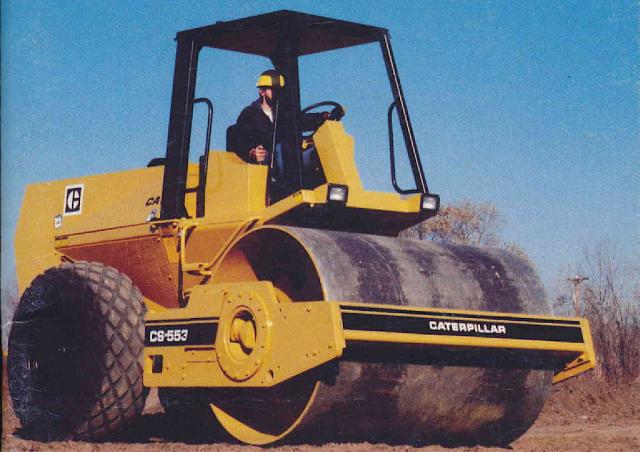

CS-553 Caterpillar CS-553 Specifications & Technical Data (1986—1992)

Weight: 10.78t – Transport length: 5.207m – Transport width: 2.438m – Transport height: 3.25m – Travel speed: 10.5km/h – Frequency: 30Hz

CS-553

Years of manufacture: 1986—1992

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - CS-553 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.78 t

Transport length: 5.207 m

Transport width: 2.438 m

Transport height: 3.25 m

Travel speed: 10.5 km/h

Frequency: 30 Hz

Roller width: 2.13 m

Rollers Ø: 1.52 m

Turning radius inside: 3.66 m

Centrifugal force: 178 kN

Model series: CS

Engine manuf.: Caterpillar

Engine type: 3208

Engine power: 115 kW

Emission level: Tier 4 f

More technical details, like: vibration, drive, amplitude, turning radius outside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CS-553 Caterpillar Specification for Europe (EN)

Caterpillar CS-553 FAQ

When was the Caterpillar CS-553 manufactured?

The Caterpillar CS-553 was manufactured from 1986 to 1992.

How much does the Caterpillar CS-553 weigh?

The Caterpillar CS-553 weighs 10.78 tons.

What are the transport dimensions of the Caterpillar CS-553 single-drum roller?

The Caterpillar CS-553 has a transport length of 5.207 meters, a transport width of 2.438 meters, and a transport height of 3.25 meters.

What is the travel speed of the Caterpillar CS-553 single-drum roller?

The Caterpillar CS-553 has a travel speed of 10.5 km/h.

What is the inside turning radius of the Caterpillar CS-553?

The Caterpillar CS-553 has an inside turning radius of 3.66 meters.

What are the compaction capabilities of the Caterpillar CS-553?

The Caterpillar CS-553 operates at a frequency of 30 Hz and generates a centrifugal force of 178 kN for compaction.

What are the roller dimensions of the Caterpillar CS-553 single-drum roller?

The Caterpillar CS-553 has a roller width of 2.13 meters and a roller diameter of 1.52 meters.

How much is a Caterpillar CS-553 Single-drum Roller (1986u20131992) worth?

The residual value of the Caterpillar CS-553 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar CS-553 overview

Steering and Brake system

Reliable

You meet the most difficult jobs head-on because Cat builds them tough. Stress areas on all machines are reinforced for longer service. Highly efficient hydraulic components take the hard work out of negotiating steep grades and deep lifts. Additionally, vibratory systems have advanced bearing lubrication features to ensure long life and low-wear operation.

Roller

Standard features

Dual drum hydrostatic drive. Dual operators positions for maximum visibility. All rolling edges and surfaces easily visible from operator platform. High drum frame clearance. No protrusion outside machine frame. Dual-range amplitude vibratory system. Vibration independently selective on front and rear drums. Automatic vibration cut-out. Easy, open access simplifies service. All servicing accomplished from ground level. Positive drum bearing lubrication system with single low-speed seal. Hinged hose assembly prolongs hose life. Dual hydraulic oil filtration system. Automatic indication of hydraulic filter clog. Spray bar shield ensures full drum coverage in windy conditions. 643 liter/170 gallon rust-resistant water tank with level gauge. Down draft exhaust and muffler located away from operator.
