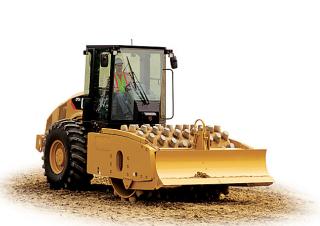

CP74 Caterpillar CP74 Specifications & Technical Data (2008—2014)
Technical specs - CP74 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.6 t
- Transport length
- 6.5 m
- Transport width
- 2.36 m
- Transport height
- 3 m
- Vibration
- e
- Drive
- E
- Travel speed
- 11.4 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.295 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.81 m
- Statical line load
- 46.9 kg/cm
- Model series
- CP
- Engine manuf.
- Caterpillar
- Engine type
- C6.6
- Engine power
- 108 kW
- Displacement
- 6.6 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
