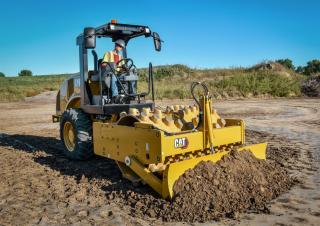

CP7 Caterpillar CP7 Specifications & Technical Data (2023—2026)
Technical specs - CP7 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.471 t
- Transport length
- 5.1 m
- Transport width
- 1.8 m
- Travel speed
- 11.4 km/h
- Roller width
- 1.676 m
- Rollers Ø
- 1.225 m
- Amplitude
- 1.59 mm
- Turning radius inside
- 3.1 m
- Centrifugal force
- 133 kN
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C4.4B
- Engine power
- 74.5 kW
- Cylinder bore x stroke
- 105x127 mm
More technical details, like: transport height, vibration, drive, frequency, turning radius outside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
