CP54B Caterpillar CP54B Specifications & Technical Data (2013—2021)

Weight: 11.13t – Transport length: 5.85m – Transport width: 2.3m – Transport height: 3.11m – Vibration: e – Drive: E

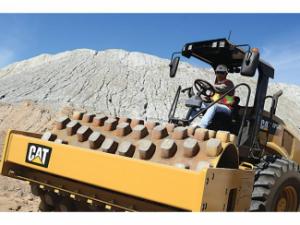

Rollers Single-drum Rollers Caterpillar CP54B

CP54B

Years of manufacture: 2013—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CP54B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.13 t

Transport length: 5.85 m

Transport width: 2.3 m

Transport height: 3.11 m

Vibration: e

Drive: E

Travel speed: 11 km/h

Frequency: 30.5 Hz

Roller width: 2.13 m

Rollers Ø: 1.55 m

Amplitude: 1.9 mm

Turning radius outside: 5.81 m

Centrifugal force: 266 kN

Model series: CP

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 98 kW

Displacement: 4.4 l

Emission level: Tier 4 f

More technical details, like: turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: Yes
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar CP54B FAQ

When was the Caterpillar CP54B manufactured?

The Caterpillar CP54B was manufactured from 2013 to 2021.

How much does the Caterpillar CP54B weigh?

The Caterpillar CP54B weighs 11.13 tons.

What are the transport dimensions of the Caterpillar CP54B single-drum roller?

The Caterpillar CP54B has a transport length of 5.85 meters, a transport width of 2.3 meters, and a transport height of 3.11 meters.

What is the travel speed of the Caterpillar CP54B single-drum roller?

The Caterpillar CP54B has a travel speed of 11 km/h.

What type of drive system does the Caterpillar CP54B have in its undercarriage?

The Caterpillar CP54B has a simple drive system in its undercarriage.

What is the turning radius of the Caterpillar CP54B single-drum roller?

The Caterpillar CP54B has an outside turning radius of 5.81 meters.

What are the compaction capabilities of the Caterpillar CP54B single-drum roller?

The Caterpillar CP54B features a single vibration system with a frequency of 30.5 Hz, an amplitude of 1.9 mm, and generates a centrifugal force of 266 kN.

What are the roller specifications of the Caterpillar CP54B single-drum roller?

The Caterpillar CP54B has a roller width of 2.13 meters and a roller diameter of 1.55 meters.
