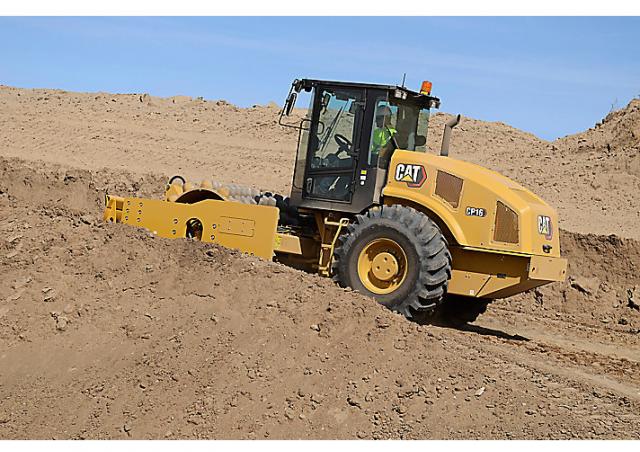

Caterpillar CP16 Specifications & Technical Data (2023-2026)

Technical specs - CP16 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.3 t

Travel speed: 11 km/h

Frequency: 28 Hz

Roller width: 2.13 m

Rollers Ø: 1.54 m

Amplitude: 2.1 mm

Turning radius inside: 3.6 m

Statical line load: 50 kg/cm

Centrifugal force: 332 kN

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 129 kW

Displacement: 4.4 l

No. of cylinders: 4

Cylinder bore x stroke: 105x135 mm

Emission level: EU V

More technical details, like: transport length, transport width, transport height, vibration, drive, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: Yes
Sheep foot: Yes
Oscillation: No
Compression control: No
Aircondition: Yes

Caterpillar CP16 FAQ

When was the Caterpillar CP16 manufactured?

The Caterpillar CP16 was first produced in 2023.

How much does the Caterpillar CP16 weigh?

The Caterpillar CP16 weighs 16.3 tons.

What is the travel speed of the Caterpillar CP16 single-drum roller?

The Caterpillar CP16 has a travel speed of 11 km/h.

What is the turning radius inside of the Caterpillar CP16?

The Caterpillar CP16 has an inside turning radius of 3.6 meters.

What are the compaction capabilities of the Caterpillar CP16 single-drum roller?

The Caterpillar CP16 operates at a vibration frequency of 28 Hz with an amplitude of 2.1 mm, generates a centrifugal force of 332 kN, and has a statical line load of 50 kg/cm.

What are the roller specifications of the Caterpillar CP16 single-drum roller?

The Caterpillar CP16 has a roller width of 2.13 meters and a roller diameter of 1.54 meters.

How much is a Caterpillar CP16 Single-drum Roller (2023u20132025) worth?

The residual value of the Caterpillar CP16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
