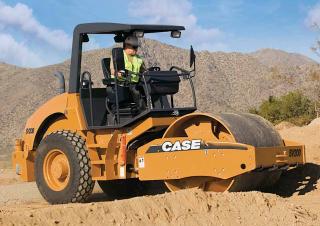

Case SV212 Specifications & Technical Data (2007-2026)

Technical specs - SV212 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.515 t

Transport length: 6.1 m

Transport width: 2.45 m

Transport height: 3 m

Frequency: 35 Hz

Roller width: 2.2 m

Turning radius outside: 5.37 m

Turning radius inside: 3.05 m

Statical line load: 33.5 kg/cm

Centrifugal force: 227 kN

Engine manuf.: Cummins

Engine type: QSB4.5

Engine power: 110 kW

Displacement: 4.5 l

Revolutions at max torque: 2200 rpm

More technical details, like: vibration, drive, travel speed, rollers Ø, amplitude, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Case SV212 FAQ

When was the Case SV212 manufactured?

The Case SV212 was first produced in 2007.

How much does the Case SV212 weigh?

The Case SV212 weighs 11.52 tons.

What are the transport dimensions of the Case SV212 single-drum roller?

The Case SV212 has a transport length of 6.1 meters, a transport width of 2.45 meters, and a transport height of 3 meters.

What are the turning radius specifications of the Case SV212 single-drum roller?

The Case SV212 has an outside turning radius of 5.37 meters and an inside turning radius of 3.05 meters.

What are the compaction capabilities of the Case SV212 single-drum roller?

The Case SV212 single-drum roller operates at a frequency of 35 Hz, generates a centrifugal force of 227 kN, and has a statical line load of 33.5 kg/cm.

What is the roller width of the Case SV212 single-drum roller?

The Case SV212 single-drum roller has a roller width of 2.2 meters.

How much is a Case SV212 Single-drum Roller (2007u20132025) worth?

The residual value of the Case SV212 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
