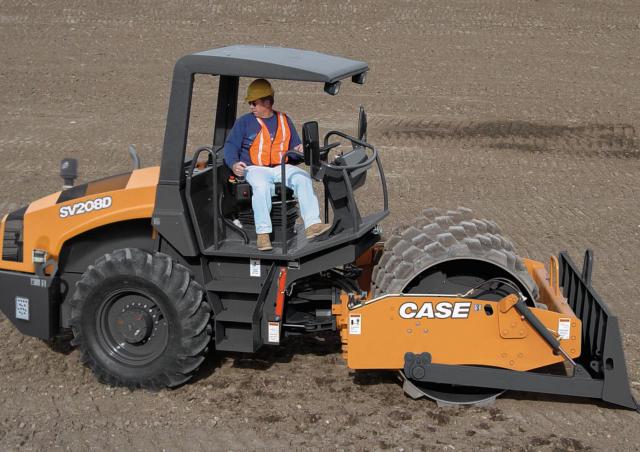

SV208D Case SV208D Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
Technical specs - SV208D Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.88 t
- Transport length
- 5.27 m
- Transport width
- 1.88 m
- Transport height
- 2.87 m
- Travel speed
- 14 km/h
- Frequency
- 41 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.3 m
- Amplitude
- 1.7 mm
- Turning radius outside
- 5.13 m
- Turning radius inside
- 3.2 m
- Statical line load
- 23.7 kg/cm
- Centrifugal force
- 145 kN
- Model series
- D
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 55.4 kW
- Displacement
- 3.62 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 390 Nm
- No. of cylinders
- 4
- Emission level
- Tier 4f
More technical details, like: vibration, drive, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Case SV208D FAQ
How much does the Case SV208D single-drum roller weigh?
What are the transport dimensions of the Case SV208D single-drum roller?
What is the travel speed of the Case SV208D single-drum roller?
What are the outside and inside turning radius specifications of the Case SV208D?
What are the compaction capabilities of the Case SV208D single-drum roller?
What are the roller specifications of the Case SV208D single-drum roller?
How much is a Case SV208D Single-drum Roller (2021u20132025) worth?
