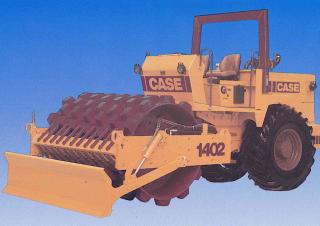

1402D Case 1402D Specifications & Technical Data (1990—2026)

Weight: 13.75t – Transport length: 5.47m – Transport width: 2.3m – Transport height: 3m – Travel speed: 10.9km/h – Frequency: 36Hz

Rollers Single-drum Rollers Case 1402D

Visit Case live at

Technical specs - 1402D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.75 t
Transport length
5.47 m
Transport width
2.3 m
Transport height
3 m
Travel speed
10.9 km/h
Frequency
36 Hz
Roller width
2.15 m
Statical line load
34.6 kg/cm
Centrifugal force
323 kN
Model series
D
Engine manuf.
Deutz
Engine type
BF6L913
Engine power
118 kW

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Case 1402D FAQ

When was the Case 1402D manufactured?

The Case 1402D was first produced in 1990.

How much does the Case 1402D single-drum roller weigh?

The Case 1402D weighs 13.75 tons.

What are the transport dimensions of the Case 1402D single-drum roller?

The Case 1402D has a transport length of 5.47 meters, a transport width of 2.3 meters, and a transport height of 3 meters.

What is the travel speed of the Case 1402D single-drum roller?

The Case 1402D has a travel speed of 10.9 km/h.

What are the compaction capabilities of the Case 1402D single-drum roller?

The Case 1402D operates at a frequency of 36 Hz, generates a centrifugal force of 323 kN, and has a statical line load of 34.6 kg/cm.

What is the roller width of the Case 1402D single-drum roller?

The roller width of the Case 1402D is 2.15 meters.

How much is a Case 1402D Single-drum Roller (1990u20132025) worth?

The residual value of the Case 1402D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
