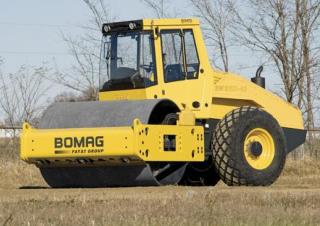

BW 215 D-40 Bomag BW 215 D-40 Specifications & Technical Data (2012—2018)
Visit Bomag live at
Technical specs - BW 215 D-40 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.2 t
- Transport length
- 5.93 m
- Transport width
- 2.3 m
- Transport height
- 2.99 m
- Vibration
- e
- Drive
- A
- Travel speed
- 7 km/h
- Frequency
- 36 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 3.494 m
- Statical line load
- 39.5 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- BF4M2012C
- Engine power
- 98 kW
- Revolutions at max torque
- 2300 rpm
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
