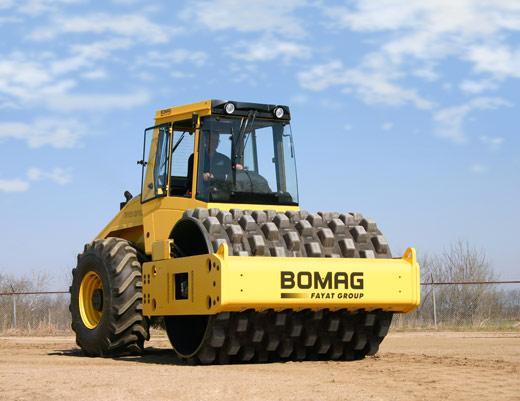

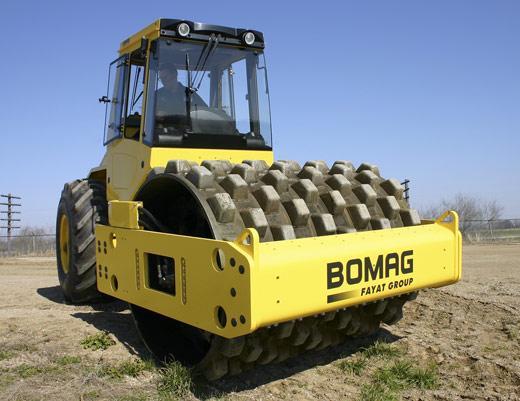

    Bomag BW 213 PD-40 Specifications & Technical Data (2006-2018)

    Rate this machine now!

    Weight: 12.9t – Transport length: 5.84m – Transport width: 2.25m – Transport height: 2.9985m – Vibration: e – Drive: A

    Technical specs - BW 213 PD-40 Bomag


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 12.9 t
    • Transport length 5.84 m
    • Transport width 2.25 m
    • Transport height 2.9985 m
    • Vibration e
    • Drive A
    • Travel speed 10 km/h
    • Frequency 30/36 Hz
    • Roller width 2.13 m
    • Rollers Ø 1.48 m
    • Amplitude 1.7/0.86 mm
    • Turning radius outside 3.494 m
    • Engine manuf. Deutz
    • Engine type BF4M2012C
    • Engine power 98 kW
    • Revolutions at max torque 2300 rpm

    More technical details, like: turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with ROPS cabin

    Special equipment

    • Diesel particulate filter
    • Sheep foot
    • Oscillation
    • Compression control
    • Aircondition
